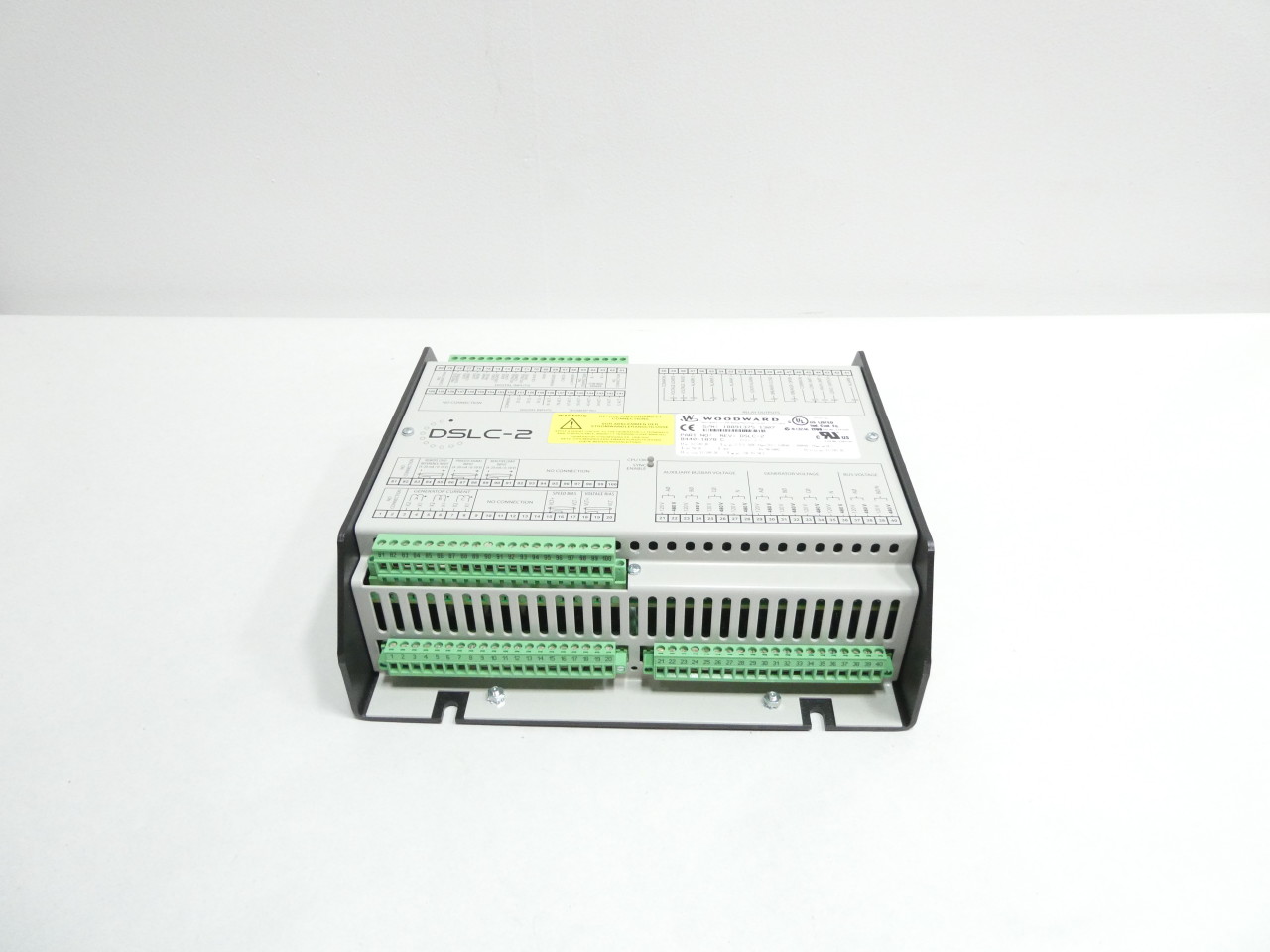

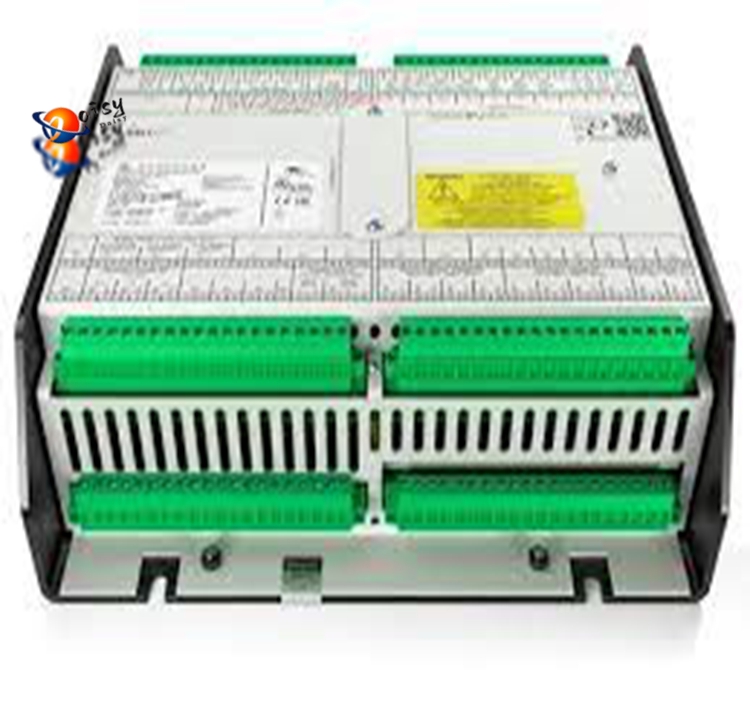

WOODWARD DSLC-2 8440-1978 Parameters

• Power Supply: 12/24 VDC (operating range: 8 to 40 VDC)
• Accuracy: 0.5 class
• Operating Temperature: -40°F to 158°F (-40°C to 70°C)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Weight: 1.9 kg
• Dimensions: 144 mm (Length) × 72 mm (Height) × 122 mm (Depth)
• Communication Ports:
• 2 Ethernet ports (one for inter-unit communication, the other for remote control and monitoring,
• 1 RS-485 port (supporting Modbus RTU protocol)
• 1 RS-232 port (for connecting Woodward Toolkit software for configuration)
• Current Transformer Input: 1A CT input

Additional Functions

• Phase matching or slip frequency synchronization
• Voltage matching
• Speed deviation analog output
• System update function
