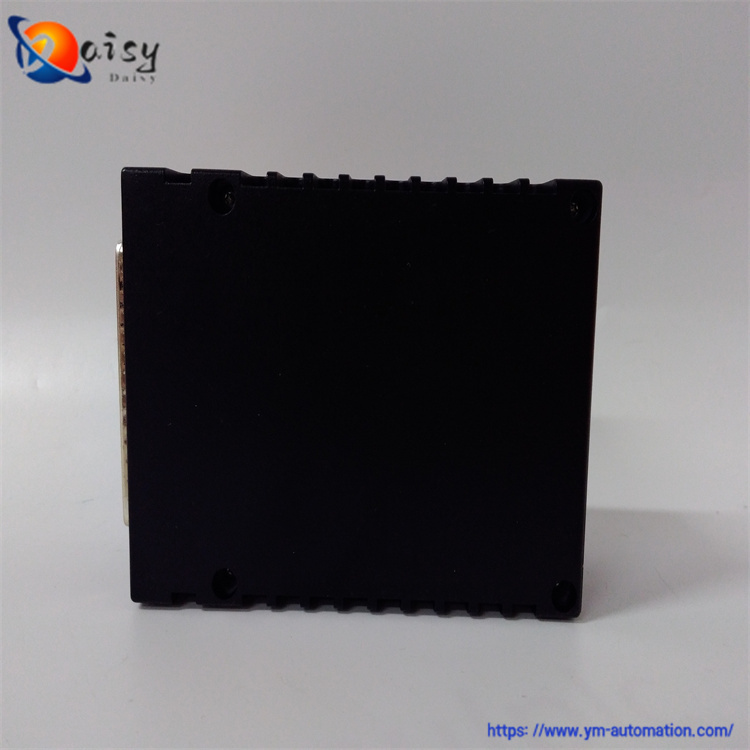

GE IC697CPX928 - High Frequency CPU Module
The GE IC697CPX928-HF is a CPU module in the GE Fanuc 90-70 series of programmable controllers. Its main parameters are as follows:
- Microprocessor: Equipped with an 80486DX4 microprocessor running at a clock speed of 96 MHz.
- Memory: Features 6 MB of battery-backed RAM and 256 KB of non-volatile user flash memory.
- Current Consumption: 3.1 amperes.
- Input Voltage: 5 VDC.
- Scan Rate: 0.4 μs per Boolean function.
- I/O Capacity: Can handle up to 12K combined inputs and output, as well as up to 8K analog inputs and outputs.
- Communication Ports: 1 RS232 serial port, 2 RS485 serial ports, and 1 factory reset port.
- Battery: Uses a lithium battery (IC697ACC701).
- Status Indicators: Equipped with 7 status LEDs to display the module's operating status and other information.
