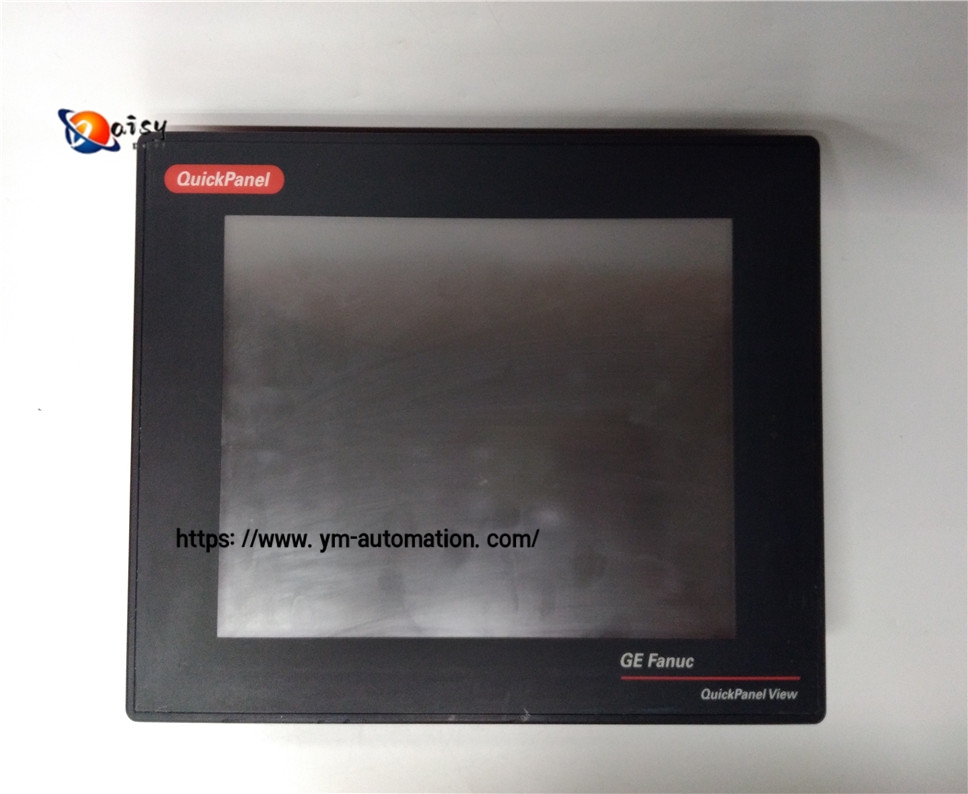

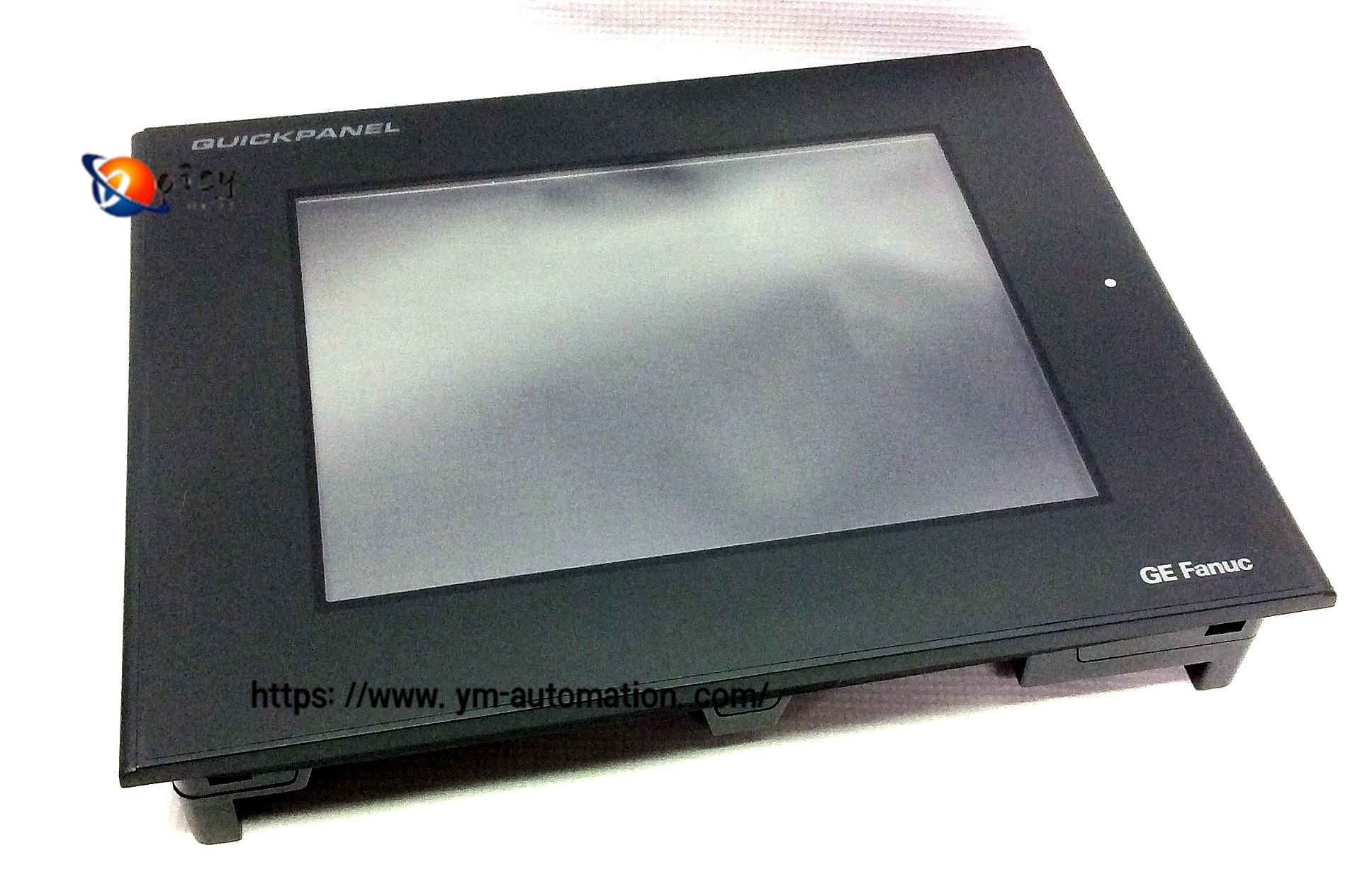

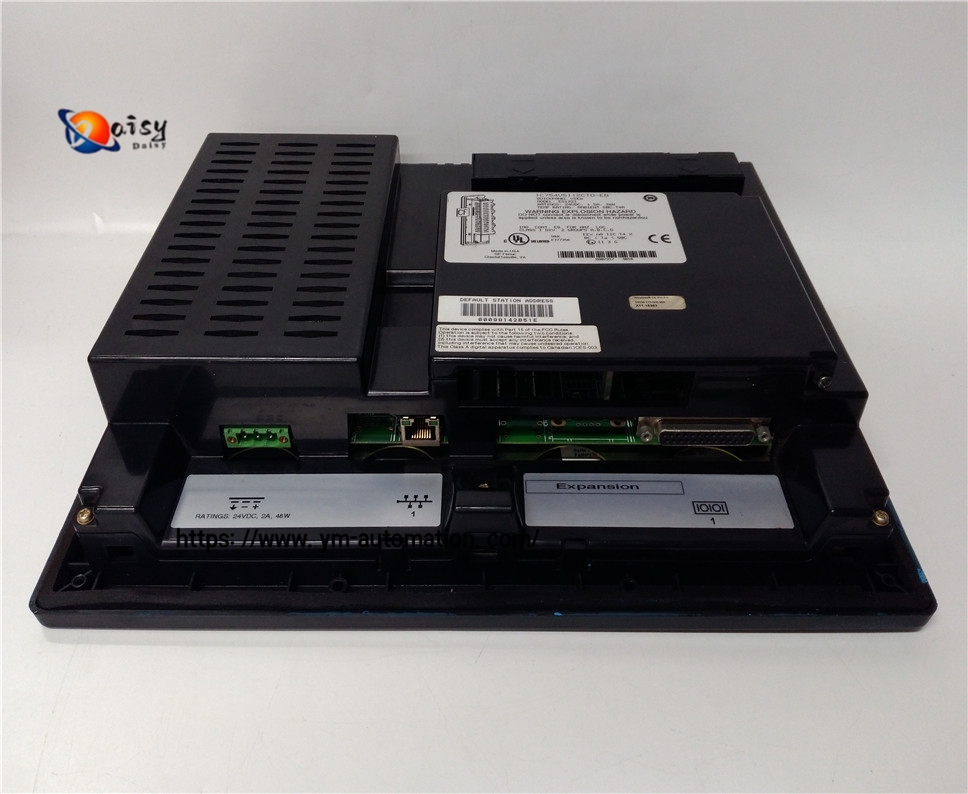

GE IC755CBS10CDA - 10-inch Operator Interface
GE IC755CBS10CDA is an operator interface terminal with the following specific parameters:】
- Display Screen:
- Size: 10.4 inches.
- Type: Standard TFT LCD.
- Resolution: 800×600 pixels (WVGA).
- Brightness: 400cd/m².
- Touch Screen: Projected capacitive, two-point touch.
- Processor: Freescale i.MX535 (1GHz ARM Cortex A8).
- Memory:
- RAM: 1GB DDR3 SDRAM.
- ROM: 512MB SLC NAND.
- SRAM: 512KB (with battery backup).
- Communication Interfaces:
- Ethernet Ports: 2×10/100 BaseT (RJ-45).
- Serial Ports: 1×RS-232 UART port / 1×RS-232/485 port.
- USB Ports: 2×USB 2.0 (Type A, host), 1×USB 2.0 (Mini Type B).
- Storage: 1×SD/SDHC card slot.
- Power Supply: Operating voltage 12/24VDC, maximum power consumption 18W, rated current 1.5/0.75A.
- Operating Environment:
- Operating Temperature: 0℃ to 55℃ (32℉ to 131℉).
- Storage Temperature: -10℃ to 60℃ (14℉ to 140℉).
