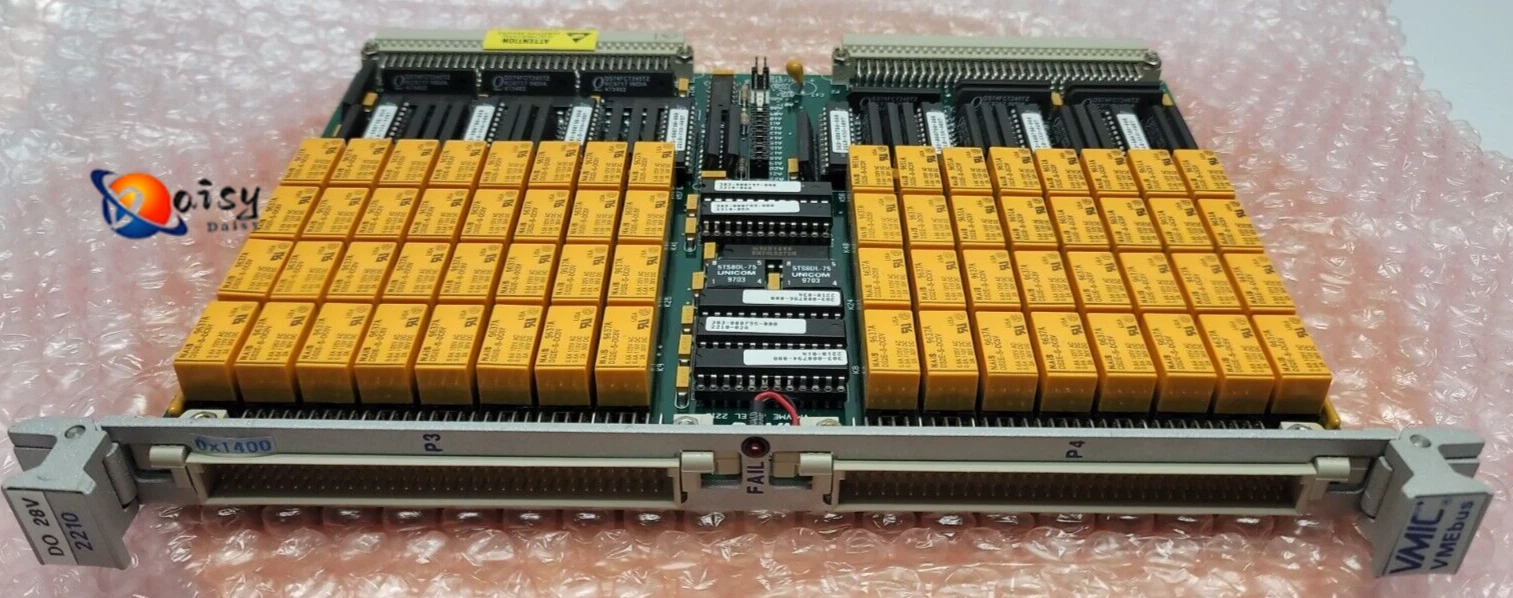

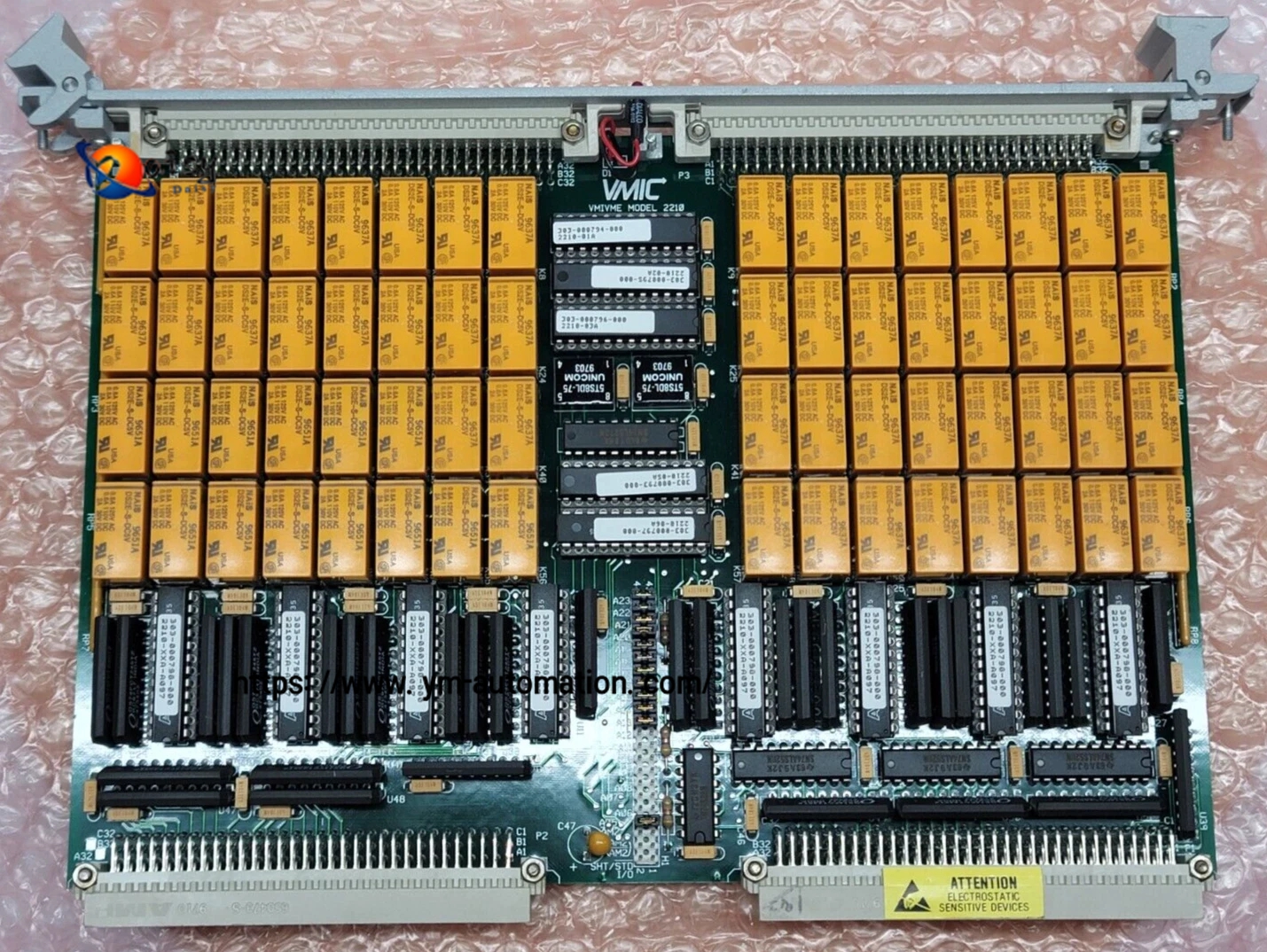

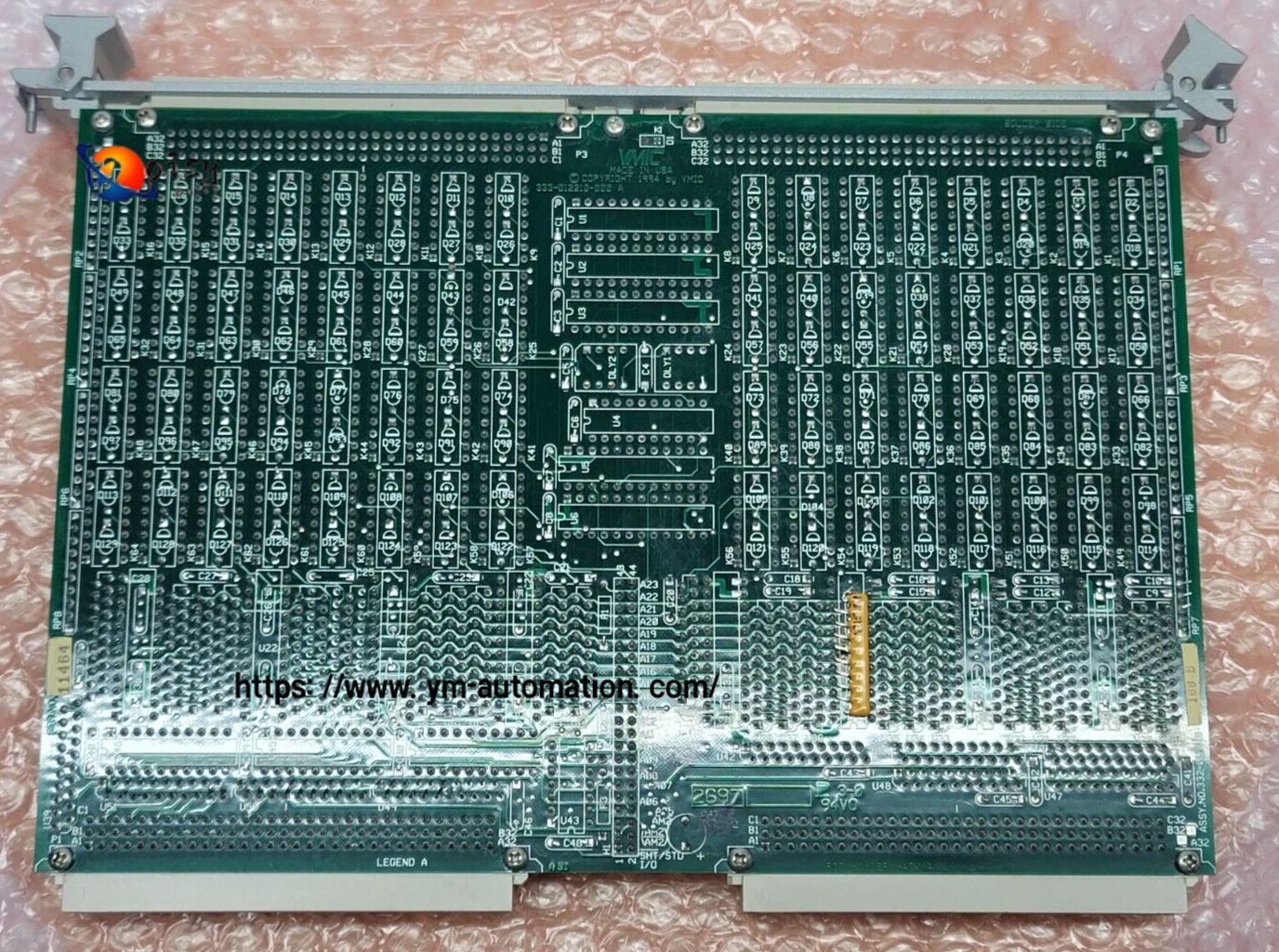

FANUC VMIVME-2210 Relay Output Module
FANUC VMIVME-2210 is a relay output module belonging to the GE Fanuc 90-70 series, with the following relevant parameters:
- Number of channels: 64 channels.
- Relay type: Latching relays are used, and the contacts can maintain their state after power-off until they are reset.
- Contact form: Supports 1 Form C (SPDT, Single Pole Double Throw) contacts, which are provided to users through two 96-pin DIN connectors; it can also be configured to form 1 Form A (SPST, Single Pole Single Throw) contacts.
- Data transmission: Supports 8-bit, 16-bit, or 32-bit data transmission.
- Fault detection: Supports real-time and offline fault detection and isolation functions, which can prevent the relay from changing state during power-on and power-off.
- Response time: The maximum time required for the relay contact state to change is 7ms.
