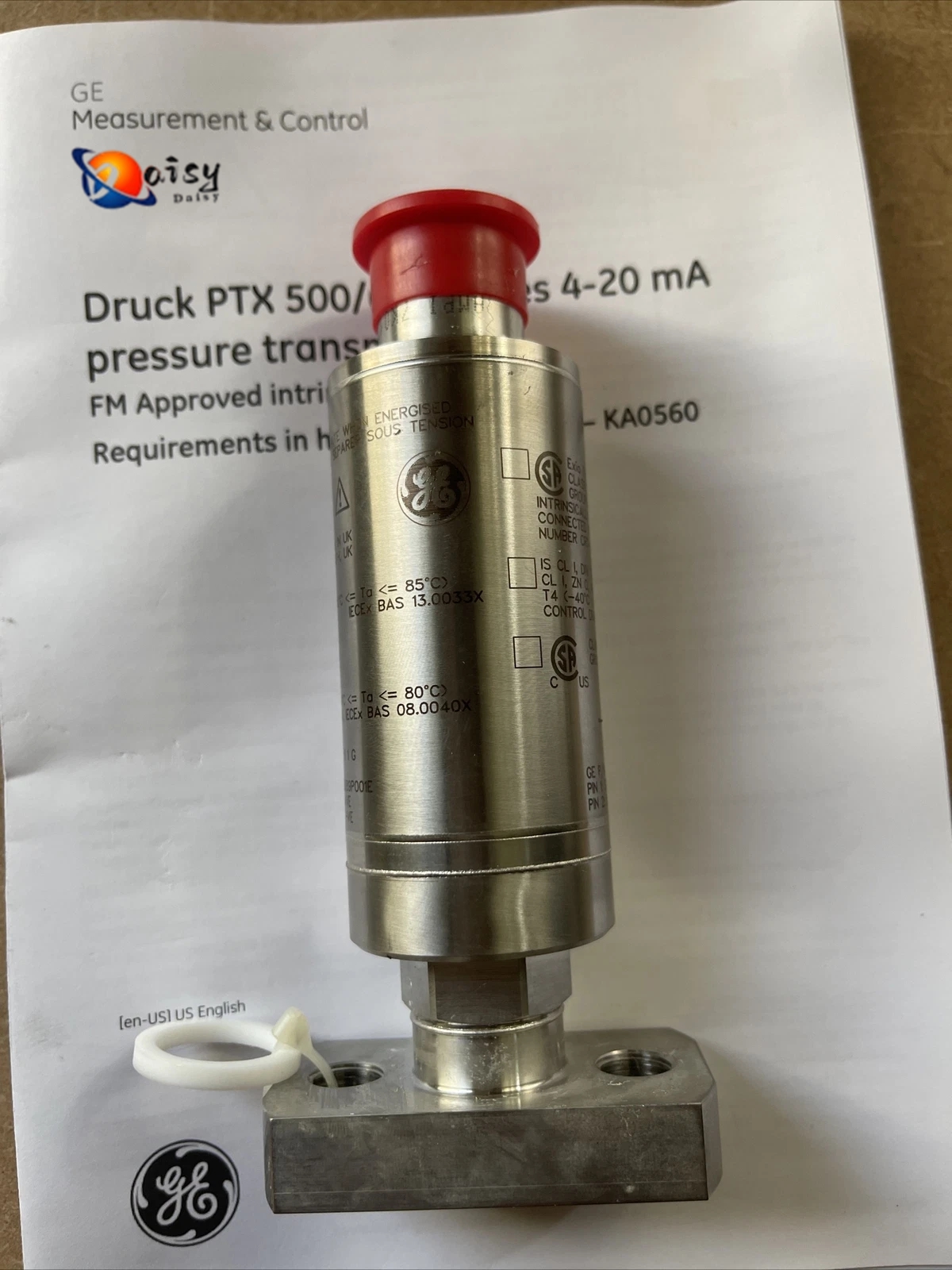

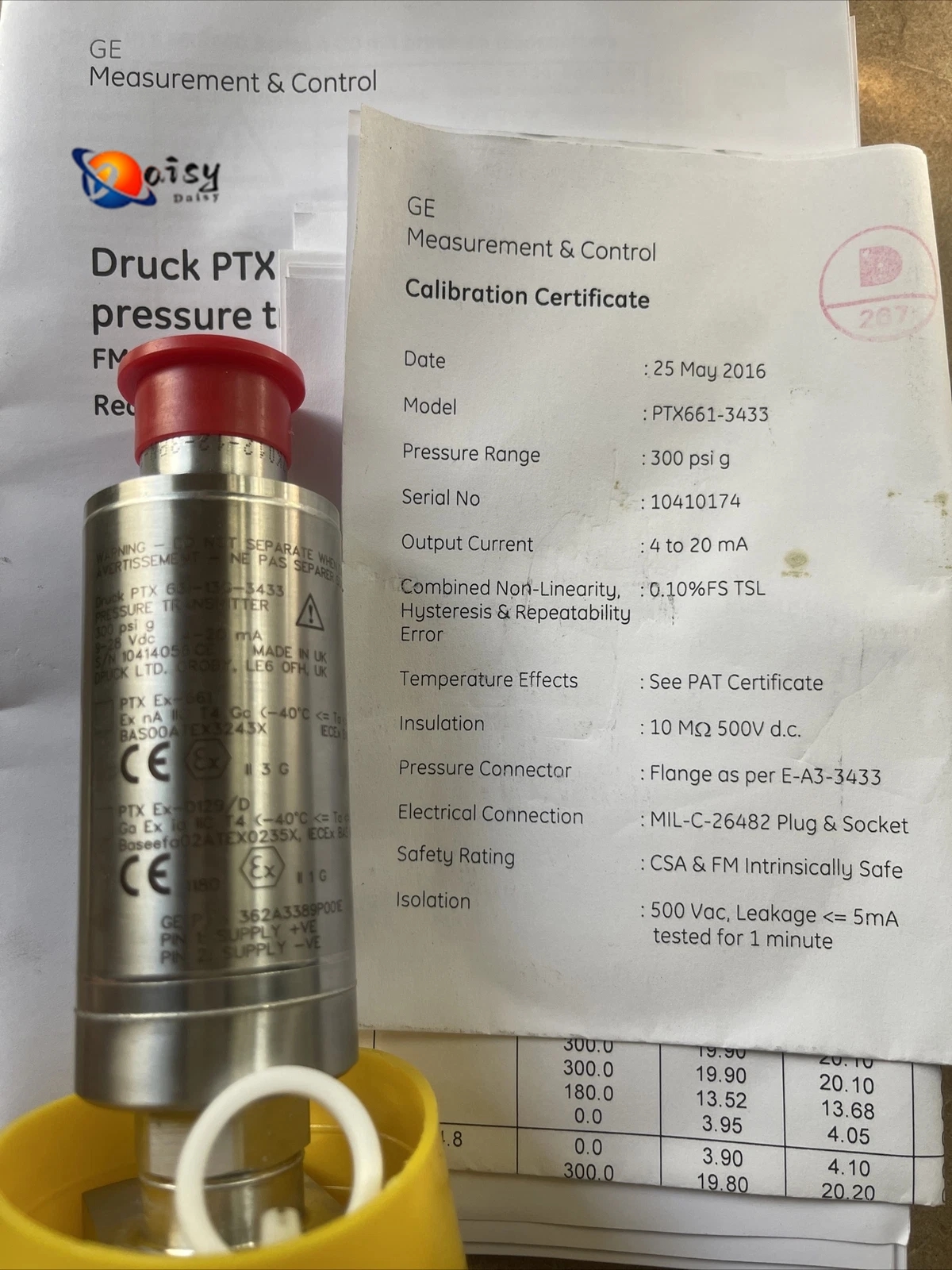

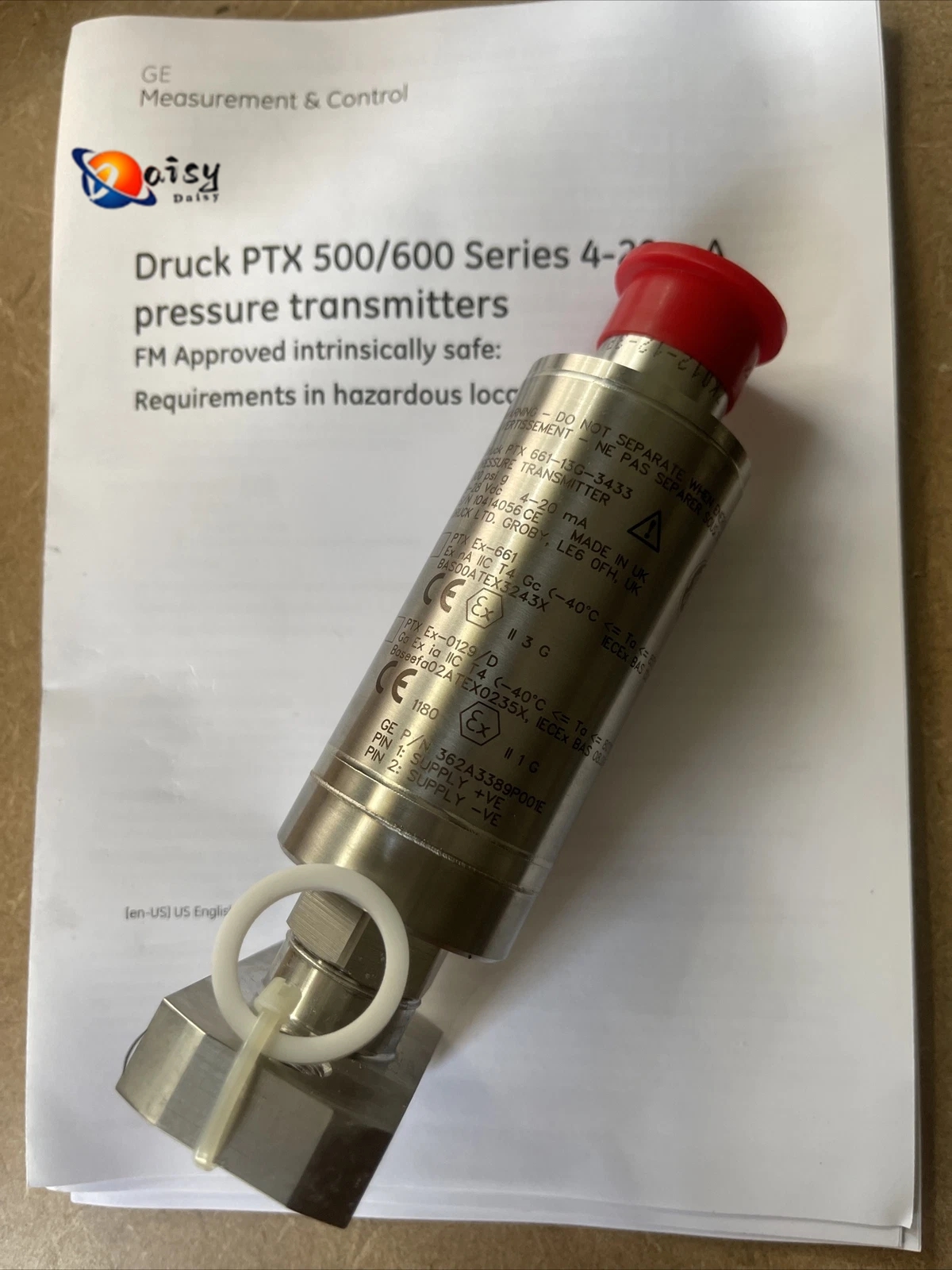

GE 362A3389P001 Pressure Sensor
GE 362A3389P001 Pressure Sensor Parameters as follows:
- Communication Protocols: Supports five protocols in total, including Modbus Master/Slave, CCM Slave, DNP3 Master/Slave, and SPL.
- Communication Port Characteristics: Each communication port supports 64 communication tasks; there are 224 module and communication status bits, which can use I, M, and T areas; there are 128 module and communication control bits, which can use Q, M, and T areas. Each communication task has 7 modes such as continuous reading and bit-controlled continuous reading.
- Dimensions and Weight: Approximately 28 × 21.2 × 3.5 cm in size and about 0.46 kg in weight.
- Pressure Range: There may be multiple optional pressure ranges, such as 10 inH2O (inches of water column) to 5 psi, 15 to 1000 psi, etc., depending on the configuration related to the model suffix.
- Temperature Range: For mV/V and 5 ~ 10 Vdc output models, the operating temperature is -45°C to 121°C; for mA output models, the operating temperature is -45°C to 115°C. In terms of the compensated temperature range, it is -17°C to 85°C for the 10 inH2O to 5 psi range, and -29°C to 85°C for the 15 to 1000 psi range.
- Thermal Accuracy: Within the compensated temperature range, for the 10 inH2O to 1 psi range, both the zero and span drift percentages are ±1.00%; for the 2.5 to 1000 psi range, both the zero and span drift percentages are ±0.50%.
- Pressure Cycles: At least 1,000,000 times.
