ntroduction

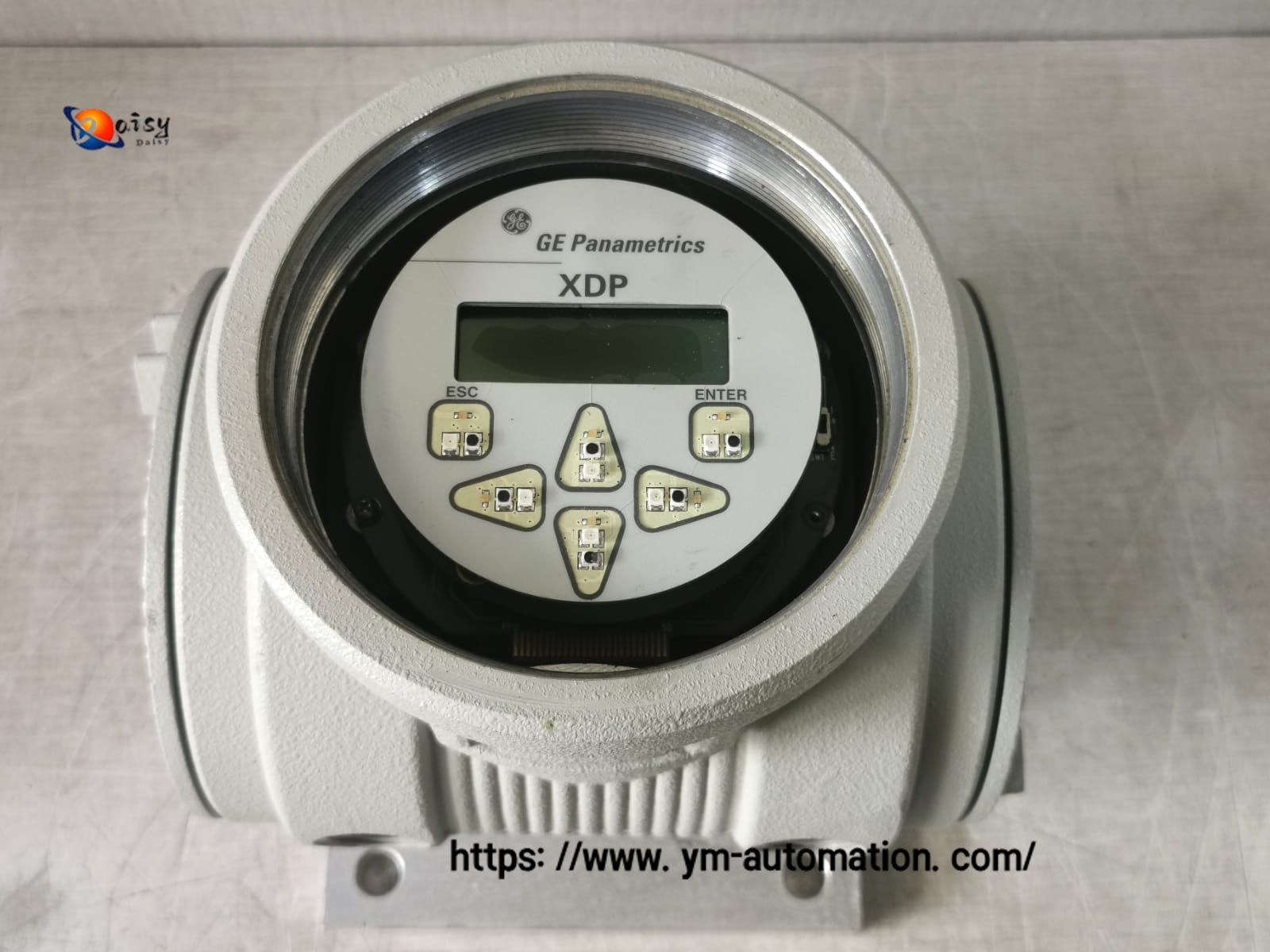

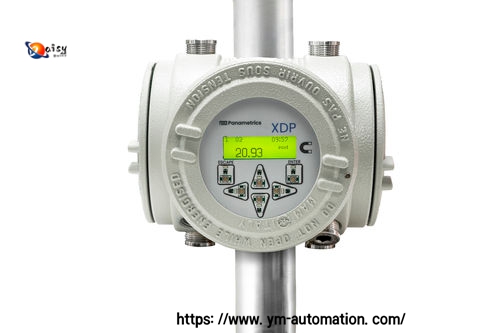

The XDP Explosion-proof Display Package is a general-purpose display/control unit

used for oxygen and thermal conductivity measurement applications in Zone 1

environments. A second part of the system is a remotely-mounted

sensor/transmitter, such as the Panametrics XMO2, XMTC or O2X1.

complete information on the transmitter.

The XDP performs the following basic functions:

1. supplies 24 VDC to power the transmitter
2. accepts and processes a 4-20 mA output from the transmitter
3. shows a selected process parameter on a digital display
4. provides a user interface for programming the system
5. provides user-configurable alarm relays and an analog output

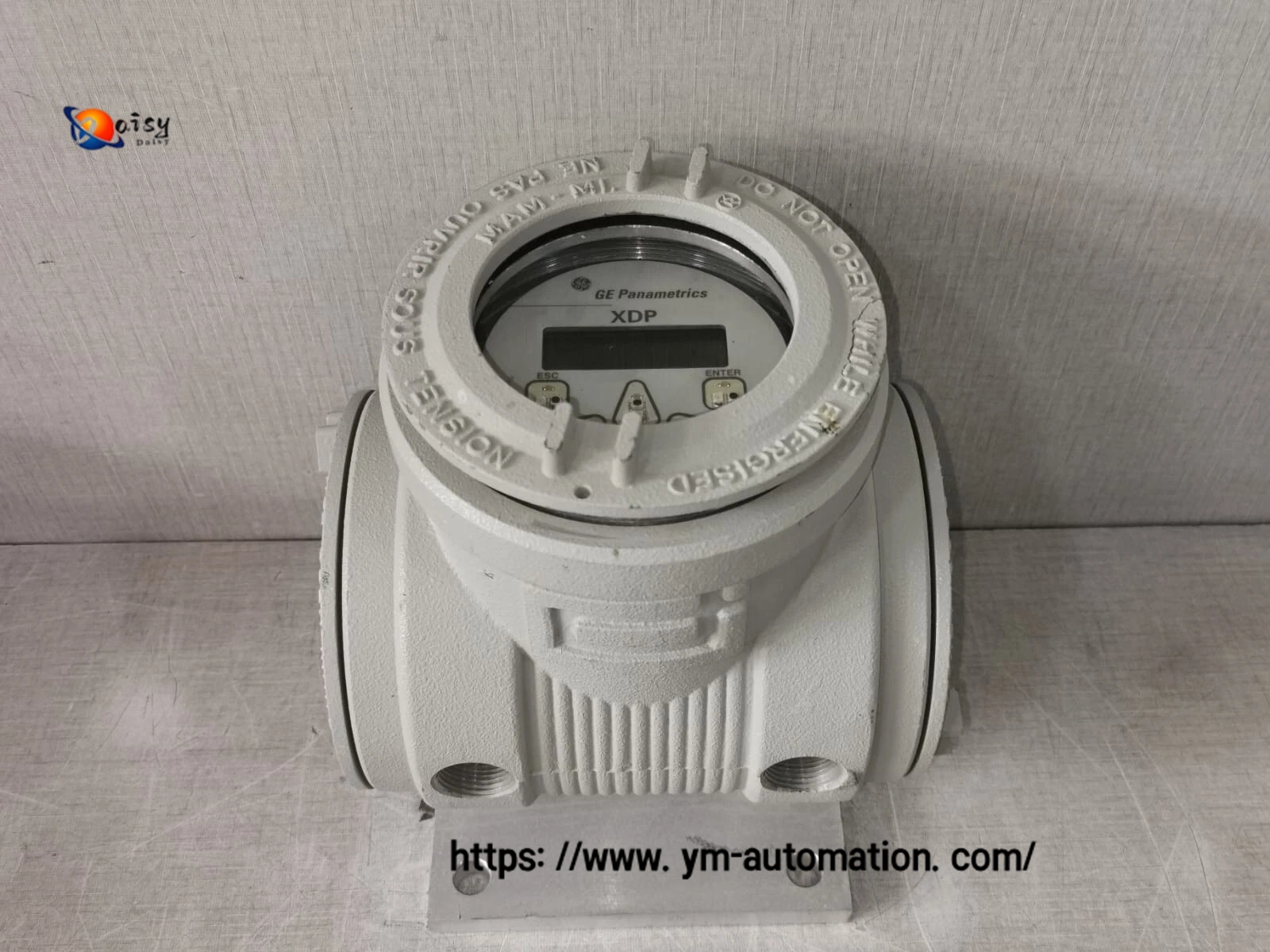

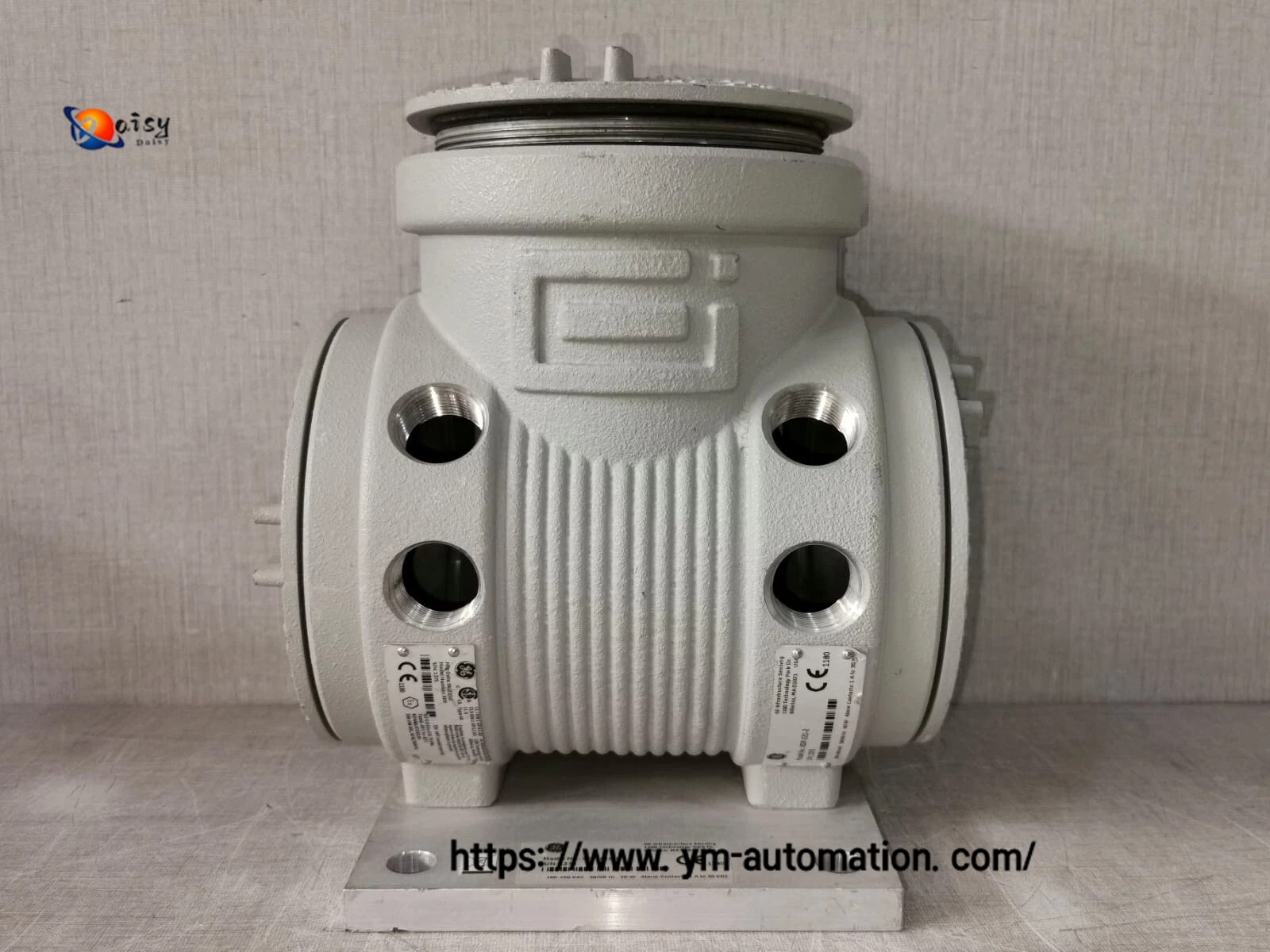

The XDP is wall-mounted via its integral mounting plate and it is connected to the

transmitter with an electrical conduit. It is certified for use in Zone 1 hazardous areas.

The XDP incorporates the following basic features:

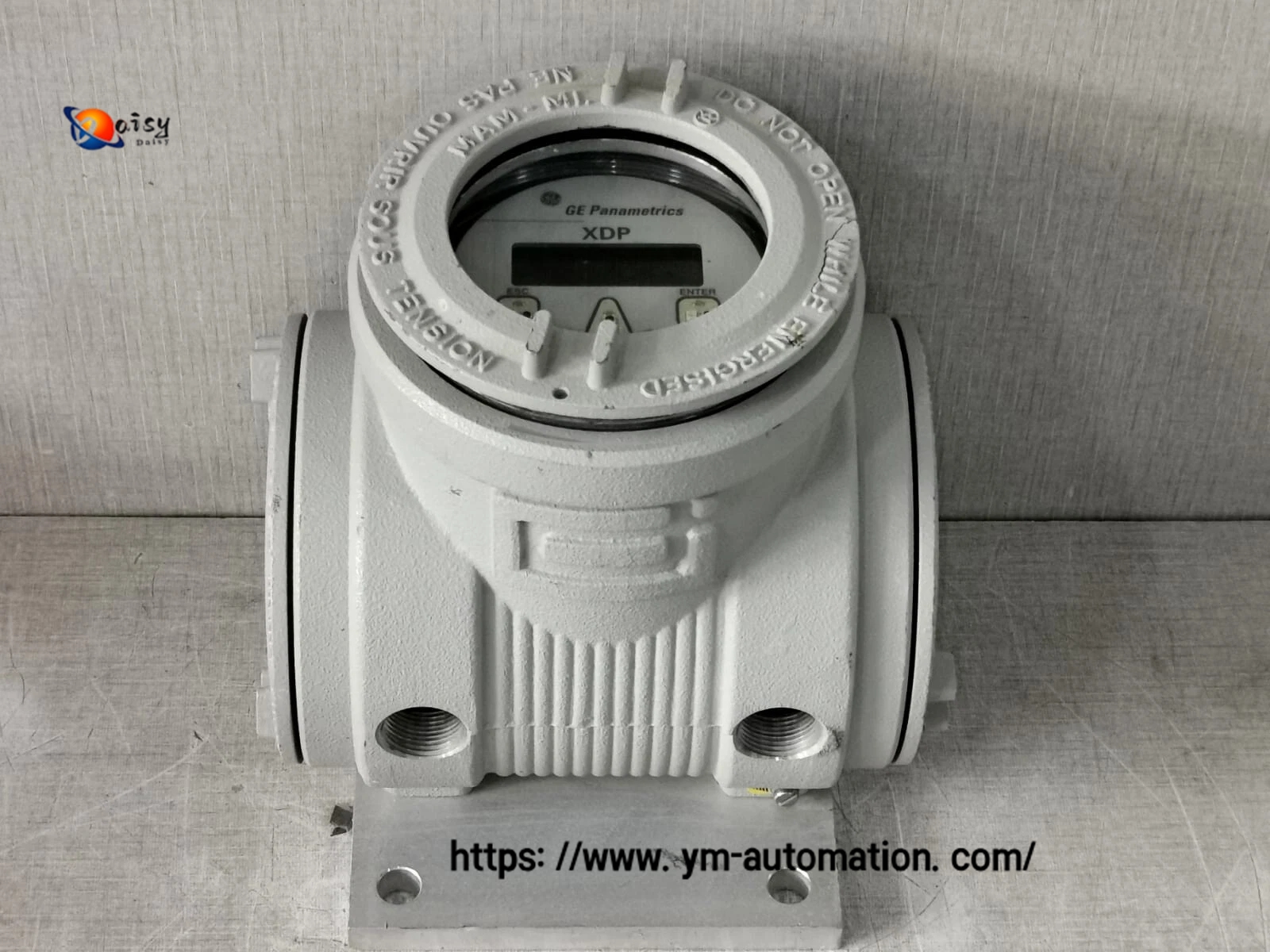

• wall-mountable, explosion-proof enclosure
• universal 100-240 VAC power input
• 24 VDC power output
• 4-20 mA analog input
• 4-20 mA/0-20 mA/0-2 V analog output
• RS-232/RS-485 serial port

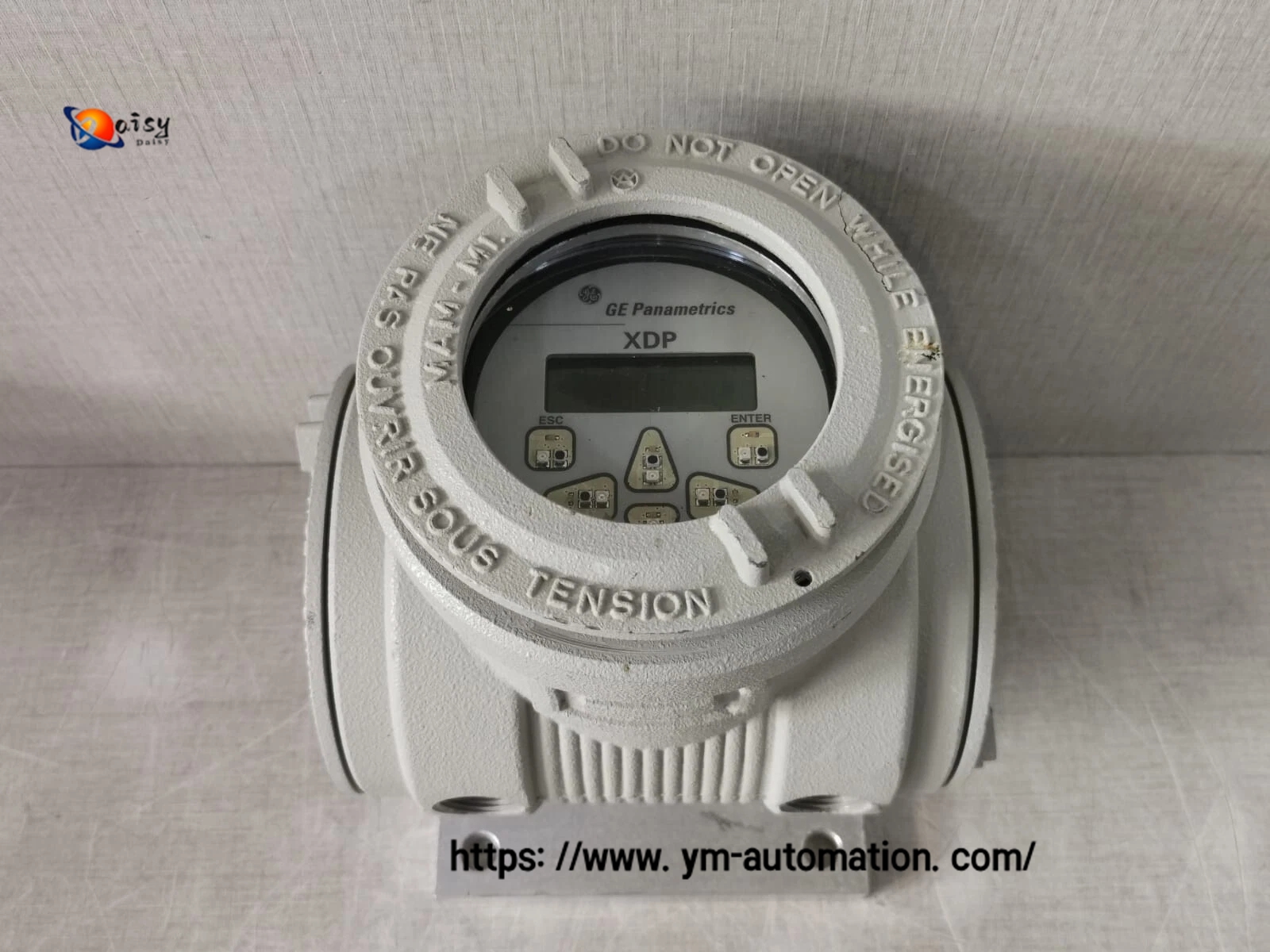

• high-resolution, backlit LCD digital display
• six-key, infrared (“through-the-glass”) keypad
• five general-purpose alarm relays
• automatic calibration


Overview

In a binary gas mixture, the transmitter measures the concentration of a target gas

in a known background gas (see the transmitter documentation for a discussion of

the specific technology employed by the sensor mechanism). To be suitable for use

in an XDP system, the transmitter must:

• be self-powered or powered by the +24 VDC output from the XDP
• output a 4-20 mA signal to the XDP analog input
• comply with all performance specifications for the system
• be suitable for use in the specified environment

The XDP accepts the 4-20 mA analog output from the transmitter and processes the

information. Then, the results are displayed on the built-in digital display window. In

addition, the data may be output as a linear analog signal to drive a data recorder

or similar device.
