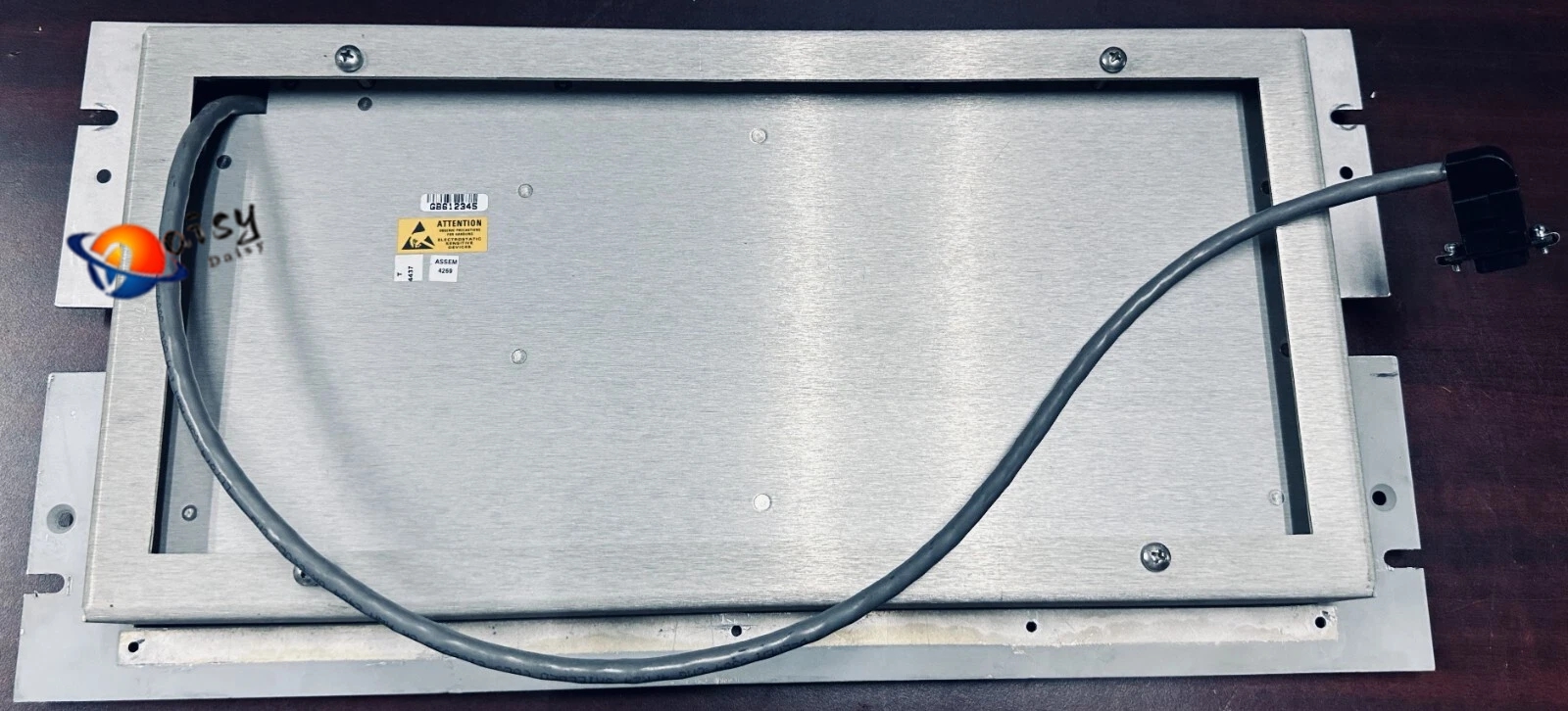

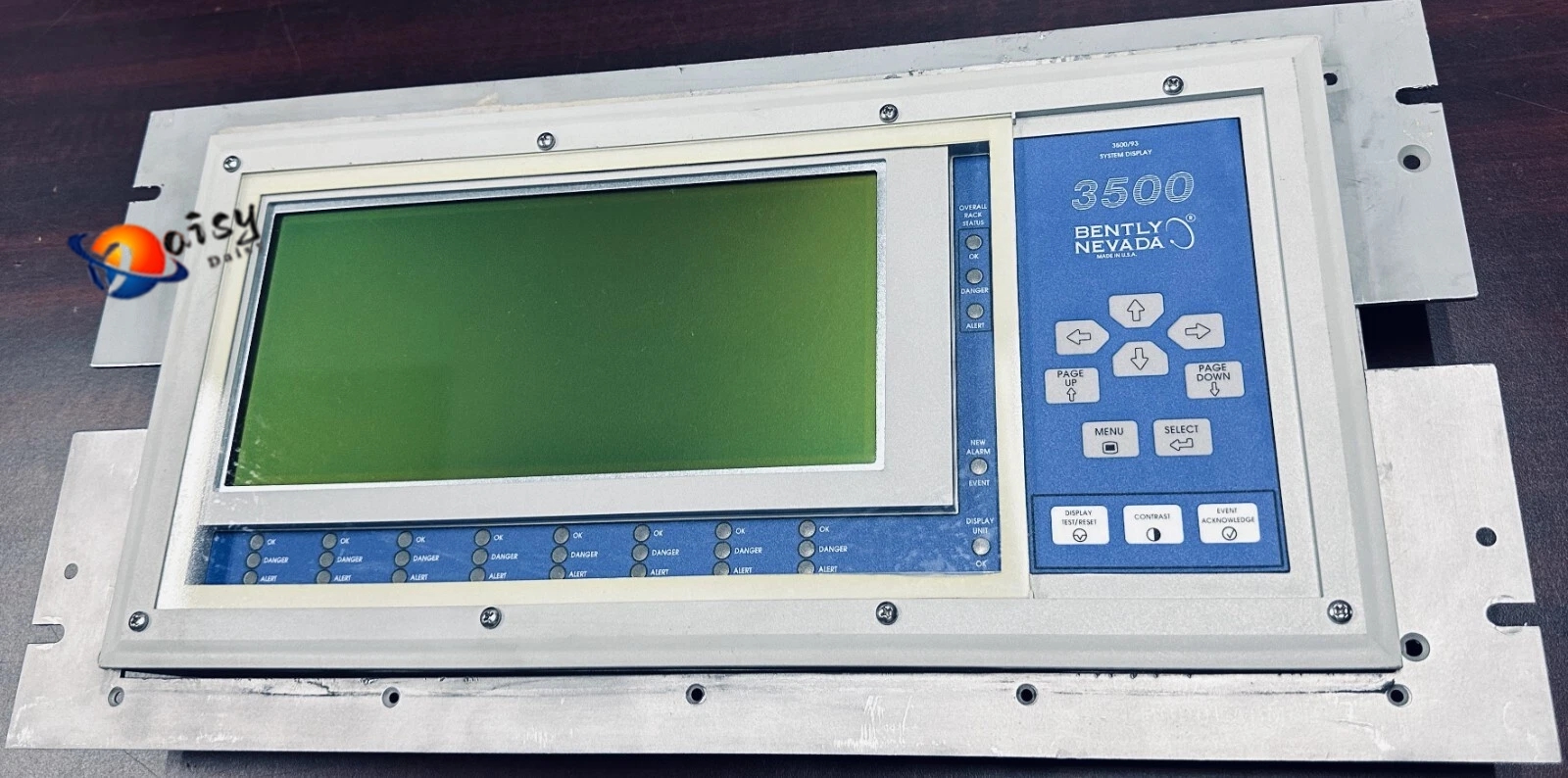

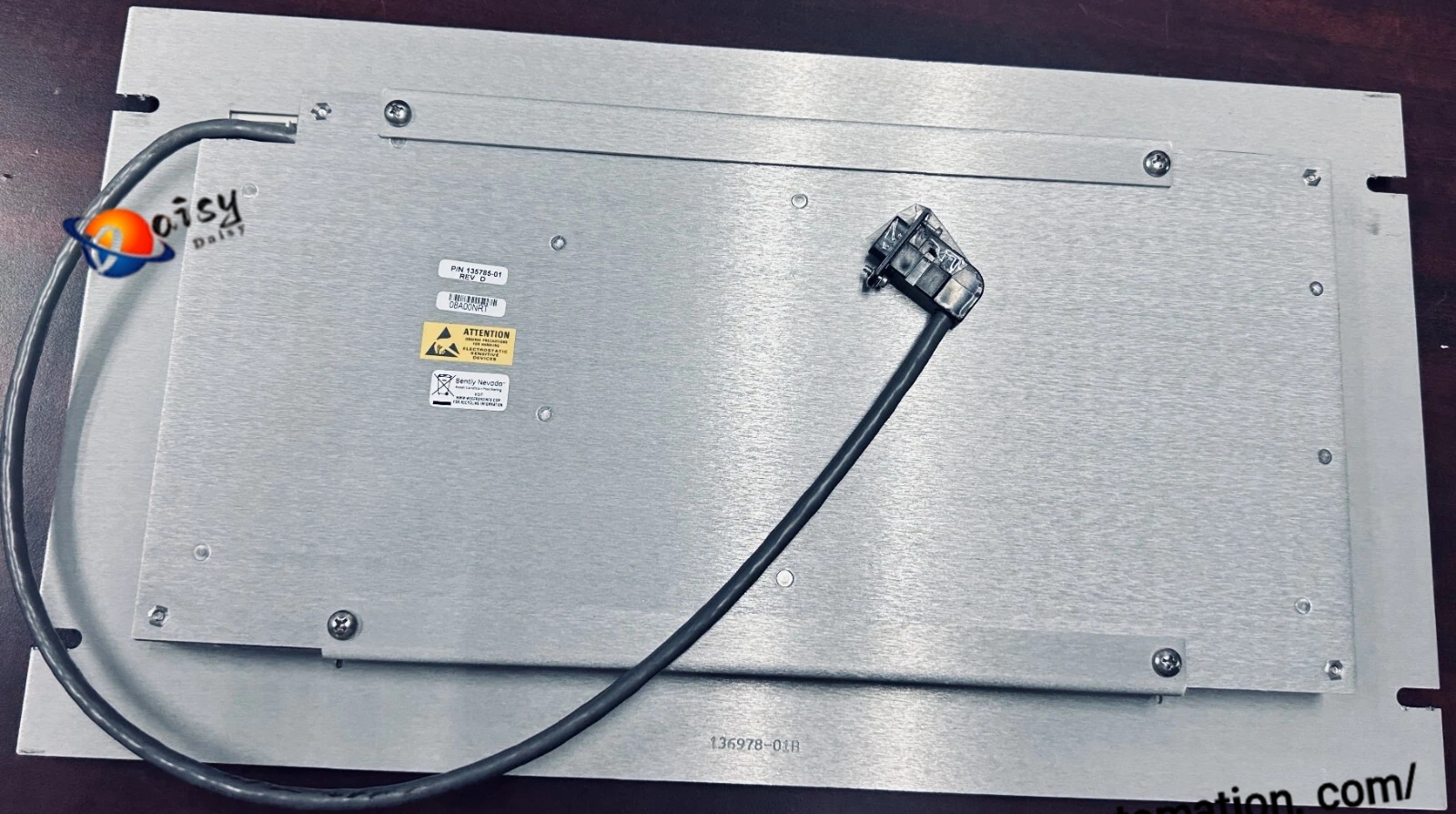

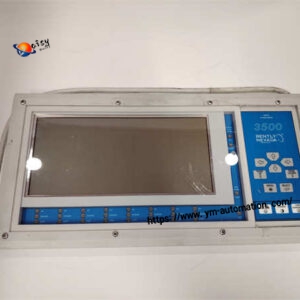

Bently 135785-01 is a display screen module for the 3500/93 system, manufactured by Bently Nevada. Below is a detailed description of its parameters, application scenarios and operating principle:
- Display Screen Specification: 10.4-inch color touchscreen with a resolution of 800×600 pixels
- Communication Interfaces: Equipped with Ethernet interface, serial interface and USB interface
- Operating Temperature Range: -10°C to 50°C
- Storage Temperature Range: -20°C to 70°C
- Humidity Range: 0% to 95% (non-condensing environment)
- Dimensions: 41.3 cm × 20.3 cm × 3.8 cm (Length × Width × Height)
- Weight: Approximately 1.7 kg
- Power Plants: Used for monitoring the real-time operating status of core rotating equipment such as steam turbines and generators
- Petrochemical Industry: Enables real-time monitoring of operating parameters of key fluid machinery like compressors and pumps
- Aerospace Field: Suitable for condition monitoring of aircraft engines and other high-precision rotating machinery
- Metallurgical and Chemical Industries: Capable of continuous monitoring of the operating conditions of heavy-duty rotating equipment such as large fans and coal mills
As a display module of the 3500/93 system, Bently 135785-01 does not directly participate in the measurement of physical quantities. Its core function is "data visualization presentation", and the specific principle is as follows:
- Data Acquisition: The 3500/93 system collects physical quantity signals (such as vibration, shaft displacement and rotational speed) of rotating machinery through various supporting sensors (e.g., eddy current sensors, speed sensors).
- Signal Processing: The collected physical quantity signals are transmitted to other functional modules of the 3500/93 system (such as signal conditioning modules and data processing modules). After processing steps like amplification, filtering and spectrum analysis, the signals are converted into recognizable digital signals.
- Data Presentation: The 135785-01 display module receives the processed digital signals and presents them to operators in graphical (e.g., waveform diagrams, trend charts) or digital (e.g., specific values) form. This helps operators grasp the equipment's operating status in real time, detect abnormalities promptly and take intervention measures.
(Note: Bently Nevada is a well-known brand in the field of industrial equipment condition monitoring and is currently under the umbrella of General Electric (GE). Its 3500 series systems are widely used in fault early warning and health management of rotating machinery.)
