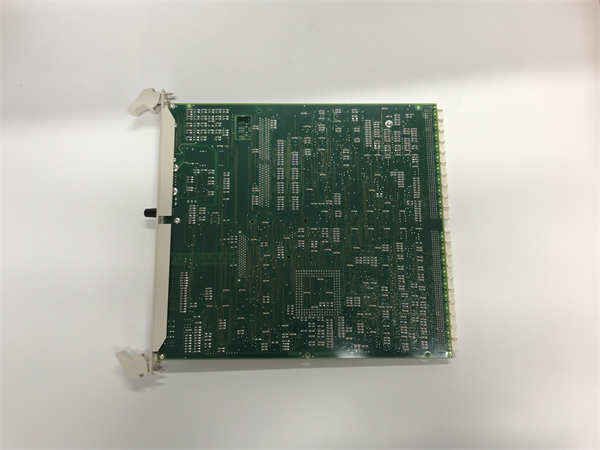

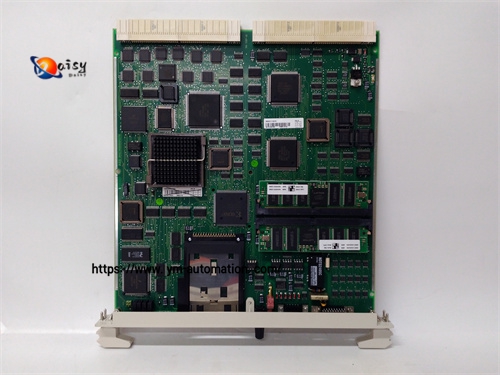

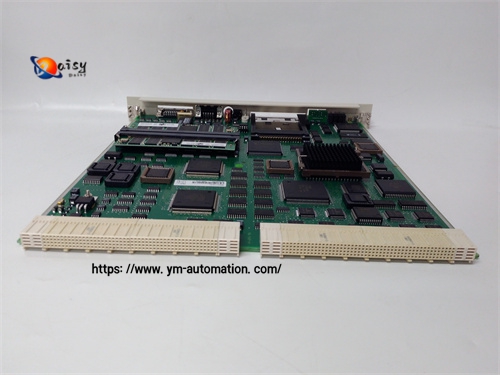

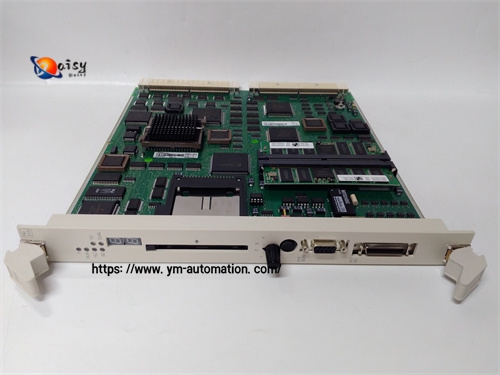

The ABB PM511V08 3BSE011180R1 is a high-performance processor module. Below is an introduction to its parameters, application scenarios, and operating principle:

1. Parameters

Processor: Equipped with a 25 MHz Motorola 68040 processor.

Memory: 8 MB dynamic RAM (DRAM) with ECC (Error-Correcting Code) functionality; includes a PCMCIA slot for flash card swapping.

Power Supply:

At 5V DC: Typical current 4900 mA, maximum current 6000 mA.

At 24V DC: Typical current 200 mA, maximum current 280 mA.

Power Dissipation: Typical value of 25 W.

Operating Temperature: -25°C to +55°C.

Storage Temperature: -40°C to +85°C.

Dimensions: 274.5 mm × 270 mm × 27 mm.

Weight: 0.76 kg.

Communication Interfaces: Supports RS-232, Ethernet, and CAN bus communication.

2. Application Scenarios

Power Industry: Can be used in the DCS (Distributed Control System) of power plants to achieve precise control and monitoring of equipment such as boilers and steam turbines. It is also applicable for power monitoring and protection in power plants and substations.

Petrochemical Industry: Used for process control in petrochemical production (e.g., controlling parameters like temperature, pressure, and flow) and enabling integration of serial port devices with control systems.

Metallurgical Industry: Suitable for temperature control, flow control, etc., in the steel smelting process, as well as multi-node industrial network deployment in metallurgical plants.

Municipal Industry: Serves as an SCADA (Supervisory Control and Data Acquisition) remote communication unit in municipal water supply systems, enabling remote monitoring and data collection of the water supply system.

Other Industries: Also widely used in quality inspection and process control in the food industry, as well as automated production line control and equipment control in fields such as automobile manufacturing, packaging machinery, and CNC machine tools.

3. Operating Principle

Scanning Mode: When the PM511V08 is in operation, the CPU executes operations in the user program sequentially. The PLC (Programmable Logic Controller) establishes input and output image areas via system software. When the CPU runs the program, it reads the status of input signals from the input image area, performs corresponding operations, and outputs the results to the output image area. After executing the last instruction of the program, the results in the output image area are sent to the outside of the PLC at once; meanwhile, the CPU reads the status of input signals again and sends them to the input image area. This process is called I/O refreshing. After refreshing, the CPU starts executing the user program from the first instruction again—this working mode is known as the scanning mode.

Control Logic Execution: As a high-performance central processing unit (CPU) for the System 800xA (ABB’s industrial automation system), it is responsible for key tasks such as control logic execution, data processing, communication management, and system diagnostics. By working in collaboration with I/O modules, communication modules, and other automation components, it realizes real-time control and optimization of industrial processes.
