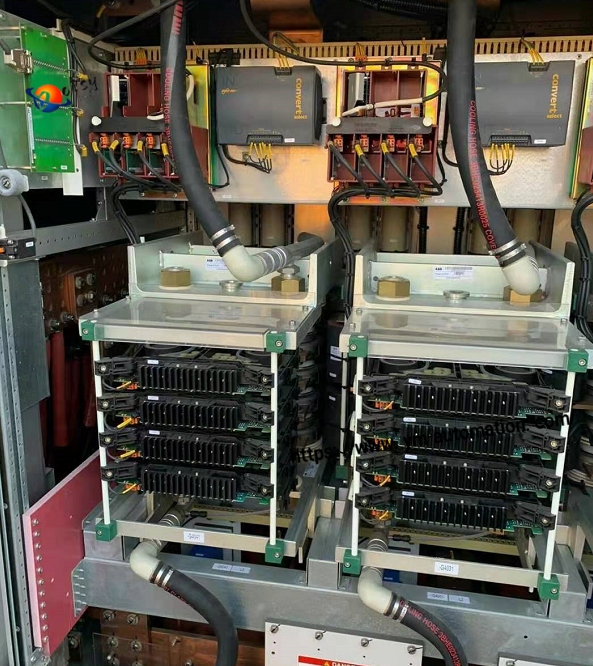

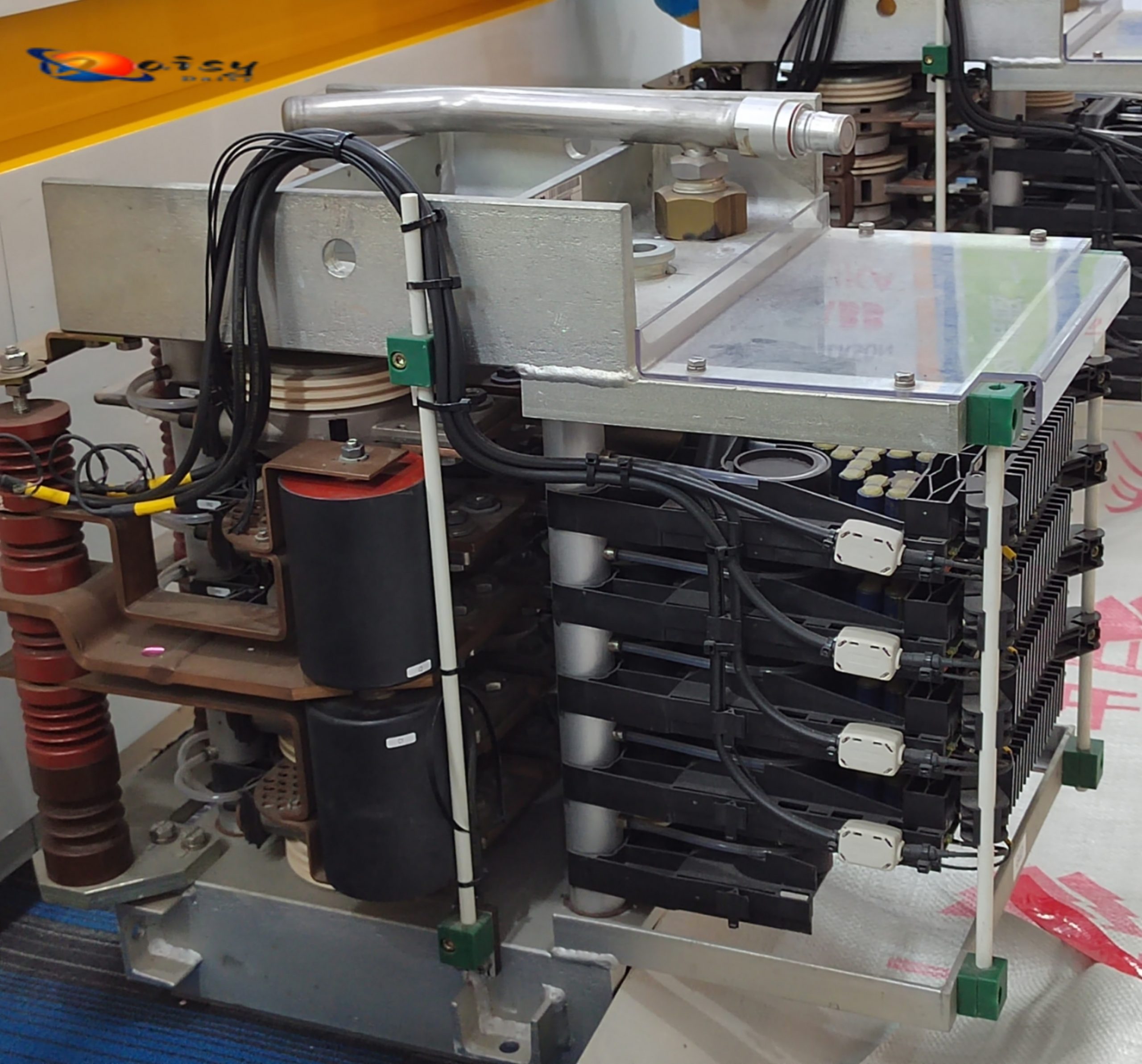

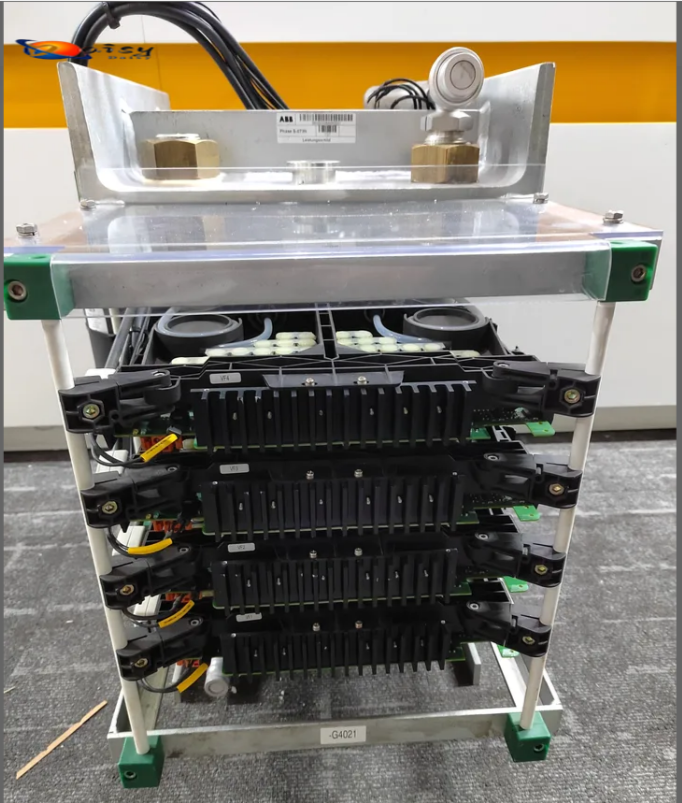

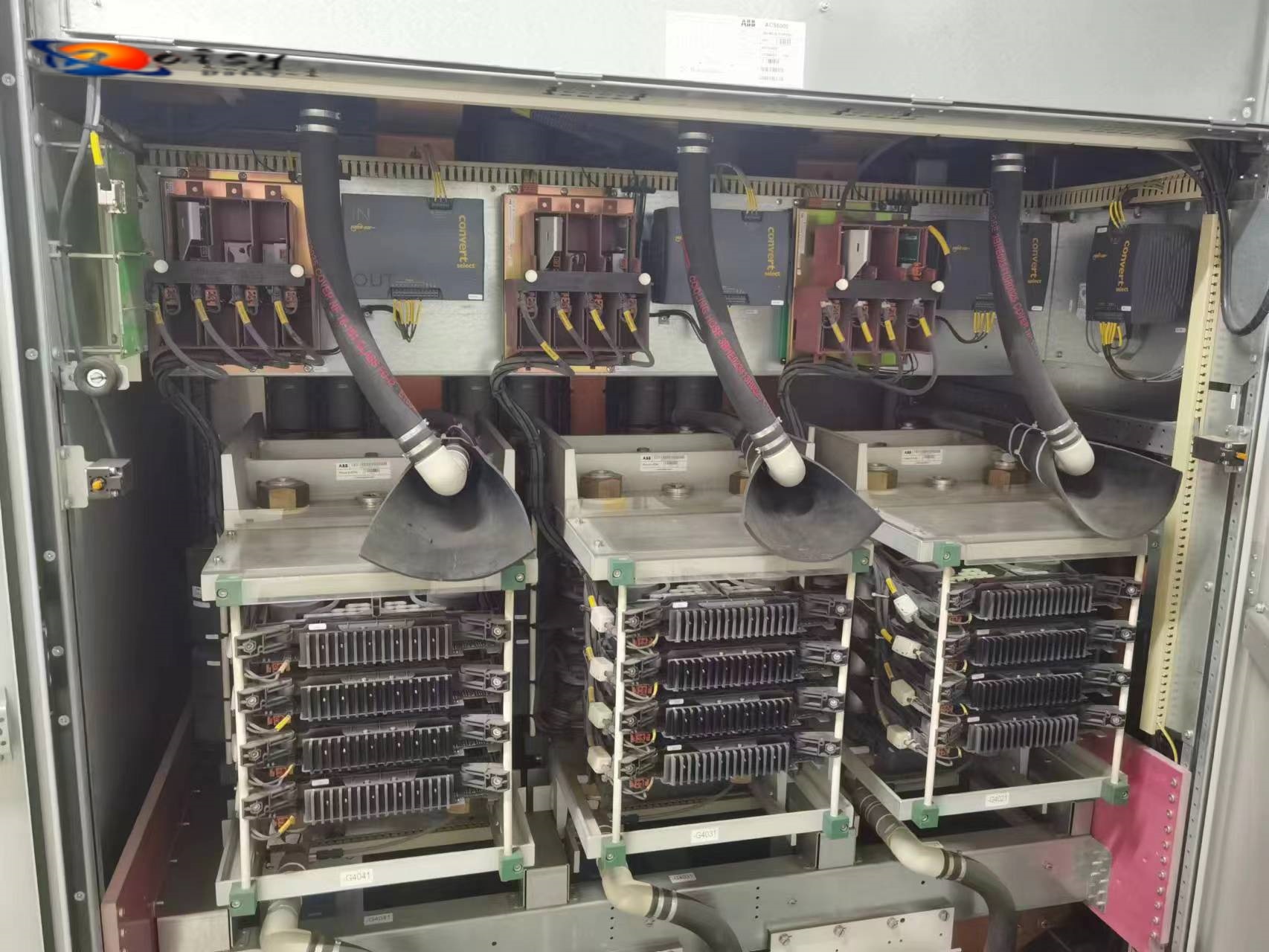

The ABB S-123H/3BHB030479R0512 is a rectifier unit phase module designed for ABB’s ACS6000 medium-voltage AC frequency converter. Below is its relevant information:

1. Datasheet & Parameters

Basic Information

Manufacturer: ABB

Type: Rectifier unit phase module

Electrical Parameters

Input voltage: Varies by rectifier type

3300V for 6-pulse diode rectifiers

1725V for 12-pulse and 24-pulse diode rectifiers

3160V for 6-pulse, 12-pulse, and 18-pulse active rectifiers

Input frequency: 50/60Hz

Rated voltage: 3.3kV

Rated current: 630A

Mechanical Parameters

Weight: 175kg

Other Parameters

Frequency converter efficiency: >98%

Enclosure protection class: IP32 (standard); IP42 and IP54 (optional)

Altitude: 0–2000m (higher altitudes allowed with derating)

Ambient temperature: 0–40°C (higher temperatures allowed with derating)

2. Operating Principle

This module adopts advanced power electronics technology and may include components such as Integrated Gate-Commutated Thyristors (IGCTs). It adjusts the phase angle of alternating current (AC) by controlling the conduction angle of thyristors, thereby realizing AC phase control. It converts the AC voltage on the secondary side into direct current (DC) voltage, which is used to supply power to the capacitors in the DC circuit.

In motor operation mode, the module functions like an inverter unit in braking mode.

In braking mode, it operates like an inverter unit in motor operation mode.

3. Application Scenarios

Industrial Automation: Suitable for various industrial scenarios, such as motor control in manufacturing. It enables precise adjustment of motor speed and torque, improving production efficiency and product quality.

Power Systems: Used in high-voltage frequency converters and other power equipment to provide efficient rectification solutions and reduce energy consumption. Meanwhile, it can monitor and control voltage and current in power systems to ensure stable operation of the power grid.

Transportation Infrastructure: Supports the power needs of transportation systems such as railways and subways. It provides stable power for the traction systems of electric trains, ensuring their normal operation.

Oil, Gas, Mining, and Metals Industries: These industries typically require high-power, high-reliability drive systems. This module can meet such requirements and operate stably in harsh working environments.
