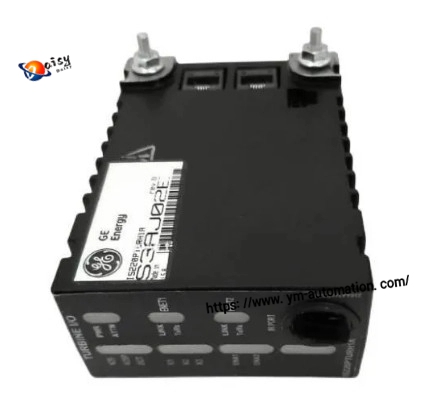

GE IS220PDIAH1A is a discrete contact input terminal board manufactured by General Electric (GE). It is part of the Mark VIe series and is used in GE’s distributed turbine control systems. Below is an introduction to its datasheet, parameters, operating principle, and application scenarios:

1. Datasheet & Parameters

Product Type: Discrete Contact Input Terminal Board

Number of Channels: 24

Operating Temperature: -40°C to +70°C

Dimensions: 15.9 cm (height) × 17.8 cm (width)

Input Isolation: All inputs feature 1500V optical isolation

Input Filter: Hardware filter, 4ms

AC Voltage Suppression: 60V RMS at 50/60Hz with 125V DC excitation

Weight: 0.8kg

2. Operating Principle

As an I/O module, the IS220PDIAH1A provides an electrical interface between one or two I/O Ethernet networks and the discrete input terminal board. The module consists of a processor board common to all Mark VIe distributed I/O packages and an acquisition board specific to discrete input functions.

It accepts up to 24 contact inputs and terminal board-specific feedback signals, and can support three different voltage levels. System inputs are connected via dual RJ45 Ethernet connectors and a 3-pin power input; discrete signal inputs are directly connected to the corresponding terminal board connectors via a DC-37 pin connector.

LED indicators provide visual diagnostics, and an infrared port enables local diagnostic serial communication.

3. Application Scenarios

It is primarily used in GE’s distributed turbine control systems, ensuring efficient and reliable data acquisition and communication in gas turbine control systems. It can be seamlessly integrated into the Mark VIe system to enhance the overall performance and reliability of the system.

Additionally, it may also be used in other industrial automation control systems that require discrete contact input detection and signal processing.
