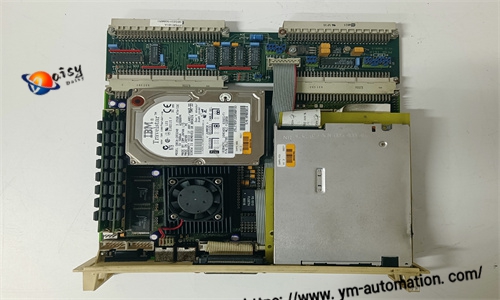

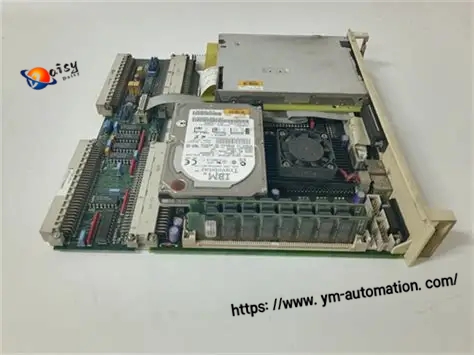

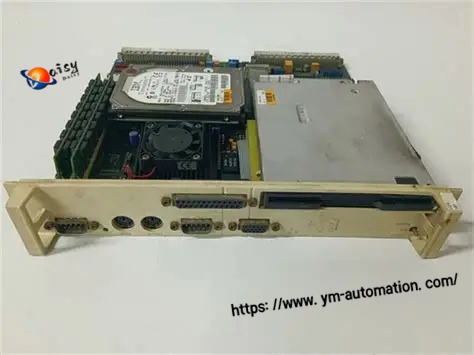

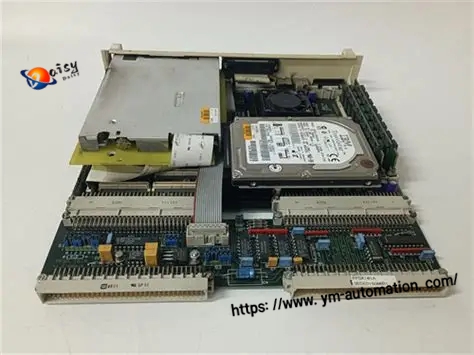

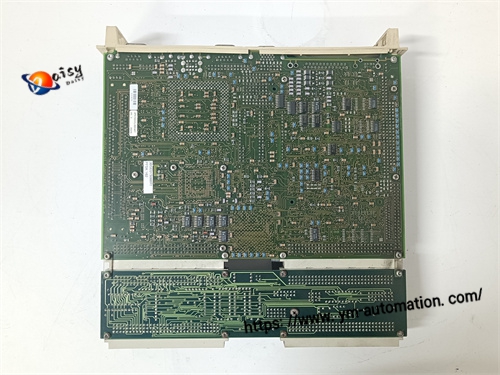

ABB PFSK162 3BSE015088R1 Signal Conditioning Module
-
Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mail： 3598571032@qq.com
Phone/Wechat/Whatsapp：+86 15339539190
-
Details
Product Overview
ABB PFSK162 (Model: 3BSE015088R1) is a core signal conditioning module in ABB's automation control systems.
It is primarily used to receive, adjust, and output control signals, converting on-site
industrial signals into standard industrial control signals for recognition and processing by
PLC or DCS systems. It is widely applied in industrial automation, energy, building automation, and other fields.
Detailed Specifications
| Parameter | Details |
|---|---|
| Model | PFSK162 3BSE015088R1 |
| Number of Channels | 2 - 16 channels |
| Supply Voltage | DC 24V (requires AC220V - 24VDC power adapter) |
| Gain | Customizable from 1 - 100; default value: 1 |
| High-Frequency Upper Limit | Customizable from 1 - 100kHz; default value: 100kHz |
| Low-Frequency Lower Limit | Customizable to 0.08Hz; default value: 0.08Hz |
| Operating Temperature Range | -10°C to +40°C |
| Operating Humidity Range | ≤85% |
| Protection Class | IP20 |
| Dimensions | 263×58×88mm |
| Weight | 0.43kg |
| Input Type | Analog input (configurable) |
| Output Type | Digital output, analog output (configurable) |
| Interface Type | Ethernet, RS-232 serial interface, CAN communication interface, etc. |
| Communication Protocols | Supports EtherCAT, PROFIBUS, Modbus TCP, OPC-UA, etc. |
Product Features
Multifunctionality: Processes both analog and digital signals, with capabilities for signal amplification, attenuation, linearization, and filtering.
High Precision & Reliability: Uses precision electronic components to ensure high accuracy and stability in signal processing, meeting requirements for most industrial control applications.
Flexibility: Signal processing functions can be flexibly adjusted via software configuration to adapt to diverse application needs.
Excellent Isolation Protection: Features robust electrical isolation to effectively shield control systems from interference signals.
Modular Design: Facilitates easy installation and maintenance, enabling flexible setup of various signal processing systems.
Application Fields
Industrial Automation: Used in process control and machine control scenarios to achieve precise control of industrial production processes.
Energy Sector: Applied in power system monitoring and management, such as excitation control of generators.
Building Automation: Enables intelligent management of building equipment, e.g., precise control of temperature, pressure, and other parameters in HVAC systems.
Other Fields: Also used in data acquisition and signal transmission/conversion in machinery, electrical, telecommunications, petroleum, chemical, steel, and wastewater treatment industries.
