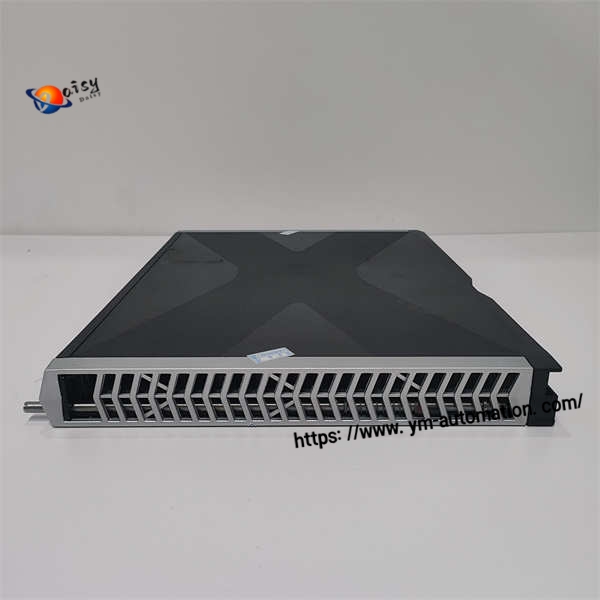

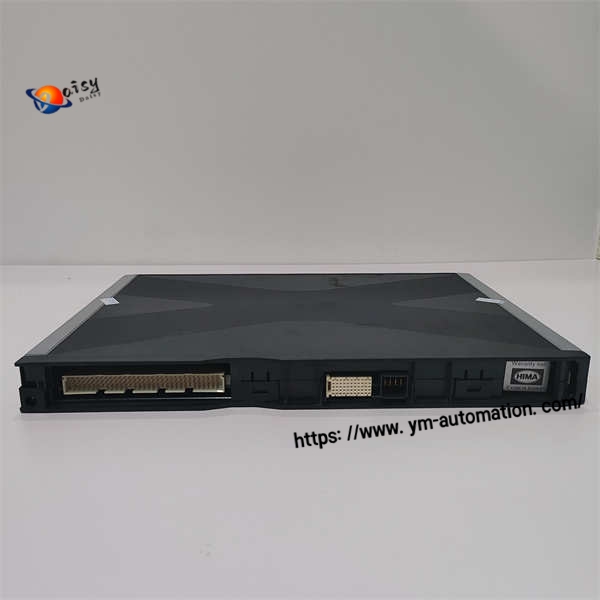

HIMax X-SB 01 Bus Module
-
Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mail： 3598571032@qq.com
Phone/Wechat/Whatsapp：+86 15339539190
-
Details
1. Product Overview
HIMA HIMax X-SB 01 (Part No.: 985210207) is a core system bus module for HIMA HIMax Safety PLC systems. It acts as the "connection backbone" to link system modules (CPUs, power supplies, safety I/Os), enabling real-time data exchange and redundancy synchronization. Compliant with SIL 3 (SIL 4 for rail use), it’s widely used in oil & gas, chemical, and power industries for ESD, F&G, and HIPPS systems.
2. Key Technical Specifications
| Parameter | Details |
|---|---|
| Model | HIMax X-SB 01 |
| Part Number | 985210207 |
| Type | System Bus Module (Safety PLC) |
| Compatible System | HIMA HIMax Safety PLC Series |
| Interfaces | 1×Service (PADT), 2×System Bus (Up/Down), 1×Diagnostic (Diag) |
| Redundancy | Supports redundant/mono operation |
| LEDs | Module Status (Run/Error/Stop/Init), Redundancy (ESS/Red), Rack Connection (Up/Down) |
| Installation | 35mm DIN rail |
| Operating Temp | -40°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Power Consumption | ≤5W |
| Certifications | IEC 61508 (SIL 3), EN 50156, CENELEC (SIL 4, rail), RoHS |
| Dimensions (W×H×D) | 120×180×35mm |
| Weight | ~280g |
3. Core Features
Stable Connection: Dual system bus interfaces (Up/Down) ensure reliable links between HIMax components.
Redundancy Protection: Redundant operation supports "zero-disturbance" failover, avoiding downtime.
Easy Monitoring: Dedicated LEDs let operators quickly check module status and faults.
Harsh Environment Resilience: Wide temp range (-40°C to +70°C) fits industrial sites like refineries or power plants.
4. Application Fields
Oil & Gas: Wellhead ESD, pipeline leak detection
Chemical: Reactor safety control, fire & gas (F&G) systems
Power Generation: Boiler protection, turbine overspeed control
Rail: Railway signal control (SIL 4 compliant)
