Product Overview

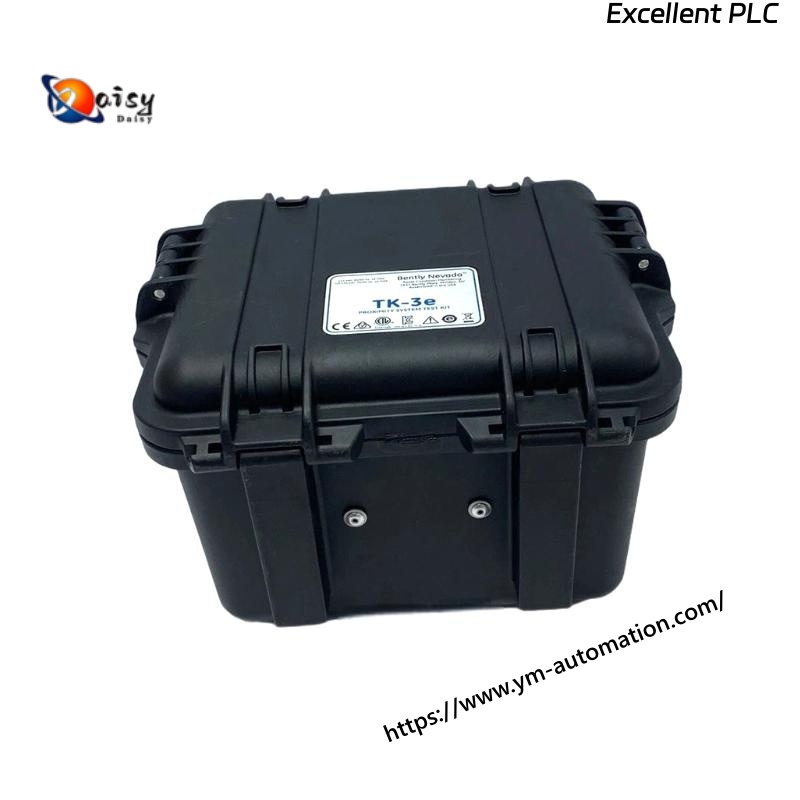

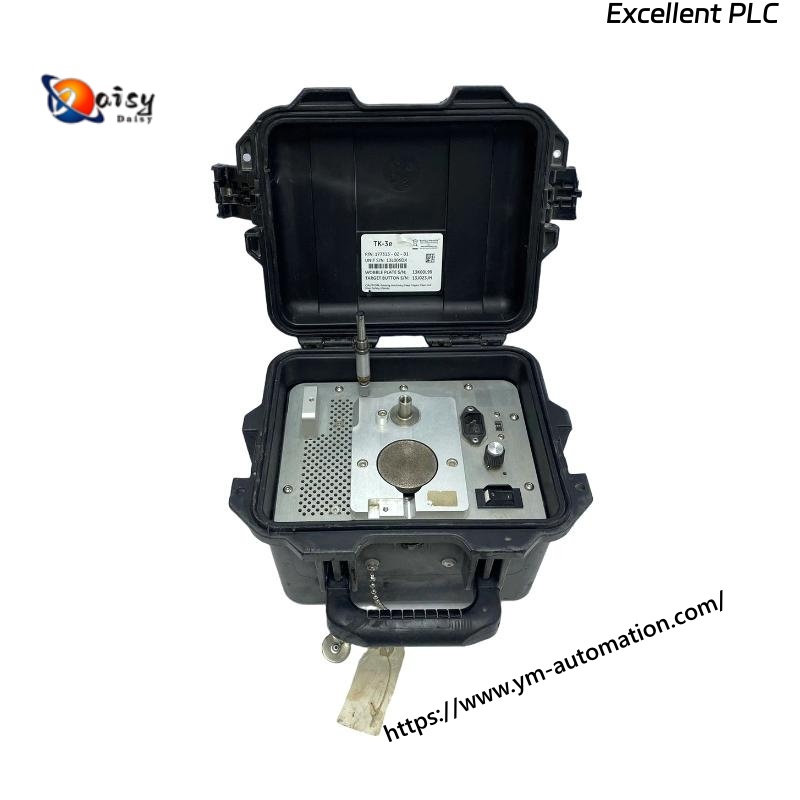

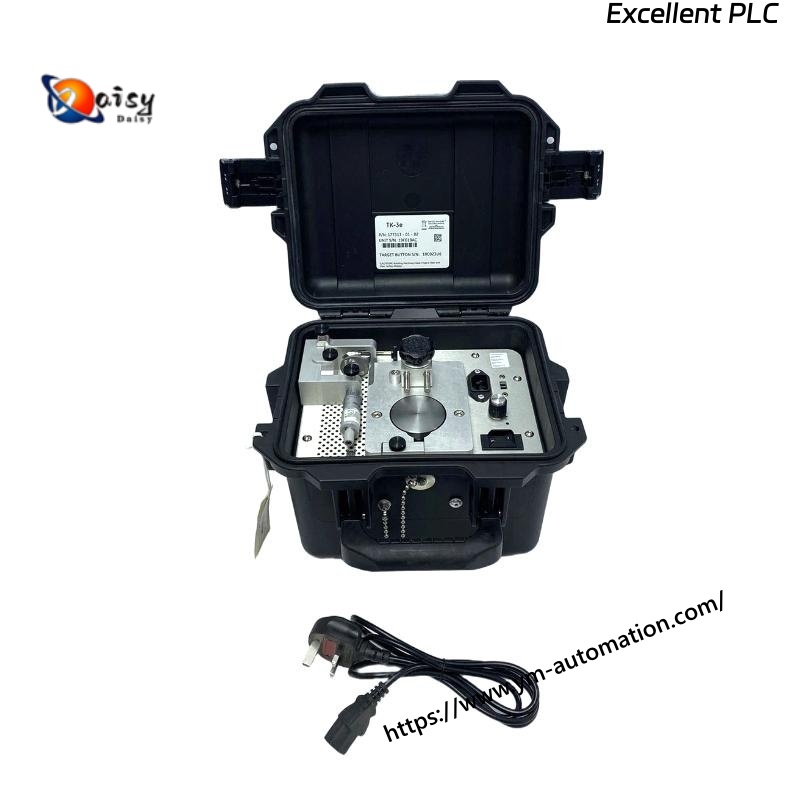

BENTLY TK-3E 177313-02-02-00 is a portable eddy current system calibrator (also known as a "frequency sweep signal generator")
designed for static and dynamic calibration of eddy current probes. It simulates shaft vibration and displacement to verify the performance of
monitors and eddy current sensor systems, ensuring accurate readings and reliable sensor input. Suitable for industrial equipment maintenance and calibration scenarios, it is compatible with BENTLY vibration monitoring systems.

Core Specifications

Model: TK-3E 177313-02-02-00

Manufacturer: BENTLY

Power Input: 95-125 Vac, 50/60 Hz, min 1A; 190-250 Vac, 50/60 Hz, min 1A

Air Supply Requirement: 90 psi (6.2 bar)

Vibration Amplitude Range: 50 μm to 254 μm (2 to 10 mils) peak-to-peak

Speed Range: Electric drive: 0 to 10,000 cpm ±2,500 cpm; Pneumatic drive: 0 to 5,000 cpm ±1,000 cpm

Spindle Micrometer Range: 0 - 25.4 mm (0 - 1000 mils)

Target Surface & Tilt Disc Material: AISI 4140 alloy steel

Dimensions: 215 mm (8.5 in) (H) × 184 mm (7.25 in) (W) × 285 mm (11.25 in) (D)

Weight: Approx. 5.9 kg (13 lb)

Key Functions

Static calibration via attached micrometer for displacement monitor verification.

Dynamic calibration with motor-driven tilt disc to simulate mechanical vibration.

Fixed probes with included probe mounting adapters for stable calibration.

Compatible with eddy current sensor systems for performance validation.

No oscilloscope required, with mechanical vibration measured by dial micrometer.

Application Fields

Calibration and maintenance of eddy current sensor systems and vibration monitors in industrial sectors such as power generation, petrochemical, machinery manufacturing, and aerospace.
