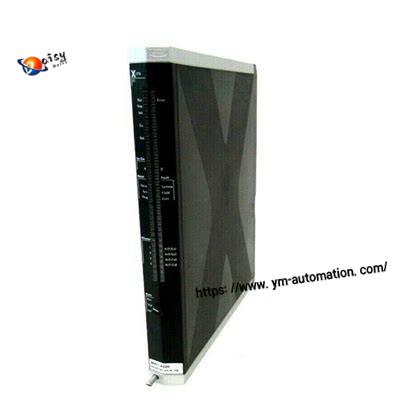

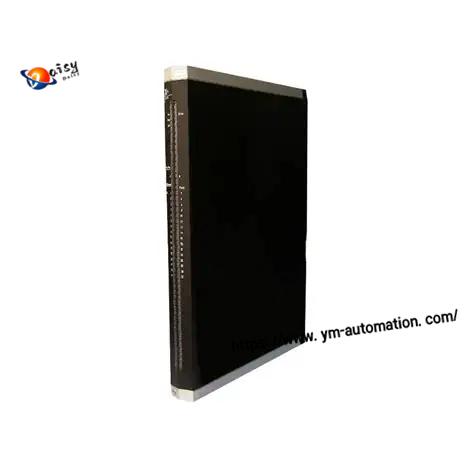

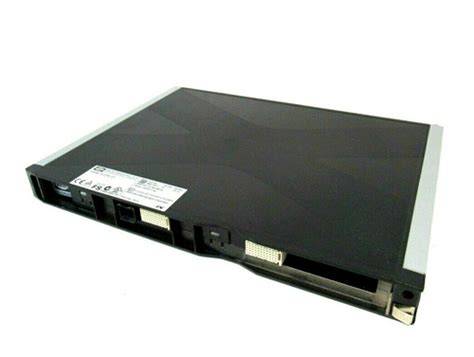

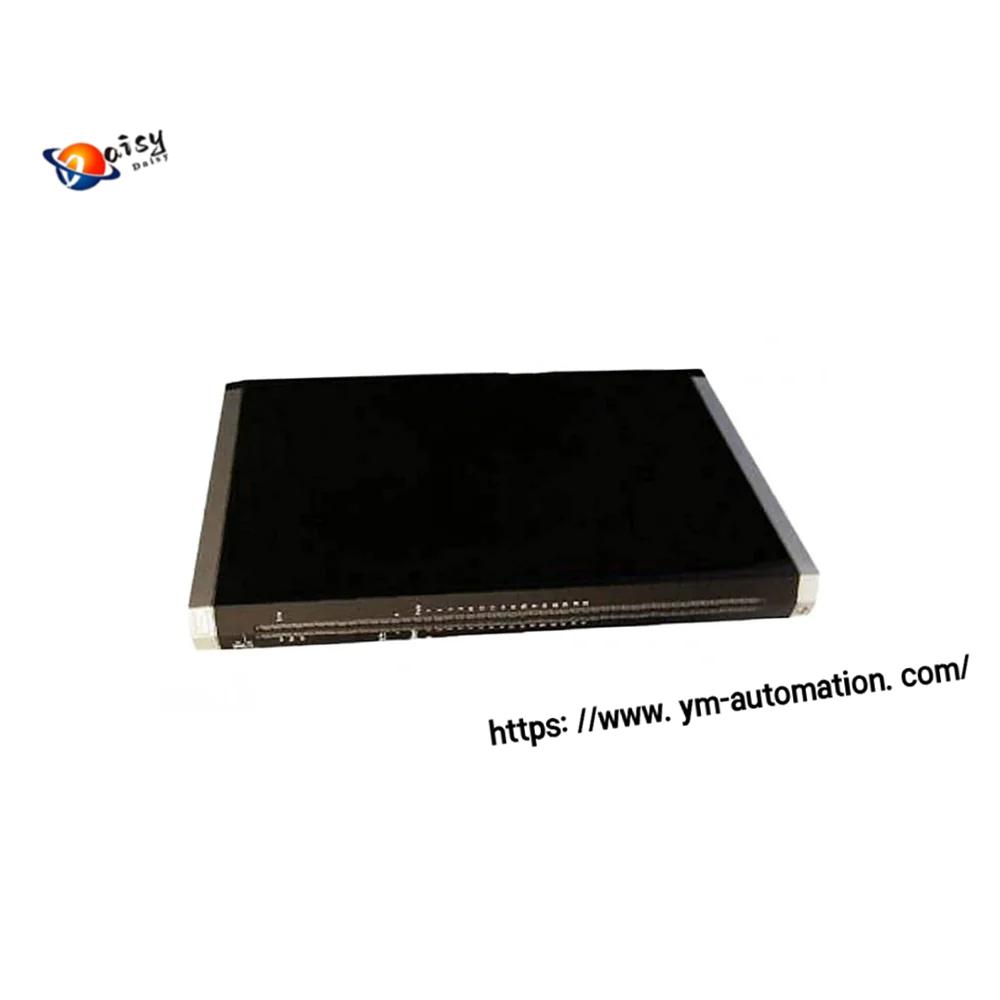

HIMA X-CPU-01 Industrial Safety Instrumented System CPU Module
-
Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mail： 3598571032@qq.com
Phone/Wechat/Whatsapp：+86 15339539190
-
Details
HIMA X-CPU-01 | HIMax Safety CPU Module – SIL 3 Certified
Overview
The HIMA X-CPU-01 is the central processing unit (CPU) module for HIMA’s HIMax safety instrumented system (SIS). Built with a
dual-core lockstep architecture, it delivers high-speed, fault-tolerant safety logic execution for emergency shutdown (ESD),
burner management (BMS), fire & gas (F&G), and turbine protection in oil & gas, petrochemical, power, and critical infrastructure
sectors. As the core of the HIMax system, it handles up to 32 user programs, redundancy management, and safe communication across the plant.
Key Features
Dual-Core Lockstep Safety Architecture: 1.2 GHz dual-core ARM Cortex-A53, real-time cross-checking for zero single-point failure tolerance.
SIL 3 Functional Safety: Certified by TÜV for safety-critical applications up to SIL 3 (IEC 61508/61511).
High-Speed Processing: Safety event response <10 ms; parallel execution of safety and non-safety tasks.
Redundancy Ready: Supports 1:1 or N+1 redundancy with automatic switchover (<50 ms) for uninterrupted operation.
Rich Communication: 2× Ethernet (10/100/1000 Mbps) with PROFIsafe, Modbus TCP, PROFINET; RS-485/232; SafeEthernet.
Large Memory: 512 MB RAM, 256 MB Flash (ECC-protected) for program/data storage.
Comprehensive Diagnostics: Real-time self-test of CPU, memory, comms, and power; LED status indicators and event logging for quick troubleshooting.
Rugged Industrial Design: IP20 protection; operates reliably from -25°C to +60°C; compact rack-mount form factor.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA Paul Hildebrandt GmbH + Co KG (Germany) |
| Model | X-CPU-01 (X-CPU 01) |
| Processor | Dual-core ARM Cortex-A53, 1.2 GHz, lockstep |
| Safety Level | IEC 61508 SIL 3, IEC 61511 SIL 3, PL e, Cat.4 |
| Memory | 512 MB RAM, 256 MB Flash (ECC) |
| Communication | 2× Ethernet (Gigabit), PROFIsafe/Modbus TCP/PN, RS-485/232, SafeEthernet |
| Redundancy | Dual CPU, automatic switchover <50 ms |
| Power Supply | 24 VDC (-15% to +20%), ~15 W |
| Operating Temp | -25°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5–95% RH, non-condensing |
| Protection | IP20 |
| Dimensions (H×W×D) | 310 × 29.2 × 236 mm |
| Weight | ~1.3 kg |
| Programming | Structured Text (ST), Ladder Diagram (LD), FBD |
| Compatibility | HIMA HIMax, HIMatrix systems |
Applications
Oil & Gas: ESD systems, offshore platform safety, pipeline monitoring.
Petrochemical: Reactor safety, burner management (BMS), F&G detection.
Power Generation: Turbine control, boiler protection, grid interlock safety.
Critical Infrastructure: Railway signaling, pharmaceutical manufacturing, water treatment safety loops.
Why Choose HIMA X-CPU-01
Proven Safety: SIL 3 certified, TÜV-approved for high-risk industrial environments.
Unmatched Reliability: Dual-core lockstep design eliminates single points of failure; redundant communication ensures data integrity.
Seamless Integration: Native compatibility with HIMax/HIMatrix I/O modules and HIMA engineering tools for fast deployment.
Global Support: Backed by HIMA’s worldwide technical support and 12-month factory warranty.
Package Includes
1 × HIMA X-CPU-01 Safety CPU Module
Original factory packaging
Quick start guide
Warranty certificate
Tags: HIMA X-CPU-01, X-CPU 01, HIMA HIMax CPU, SIL 3 CPU module, safety instrumented system CPU, industrial safety controller, ESD system processor, HIMA safety module
