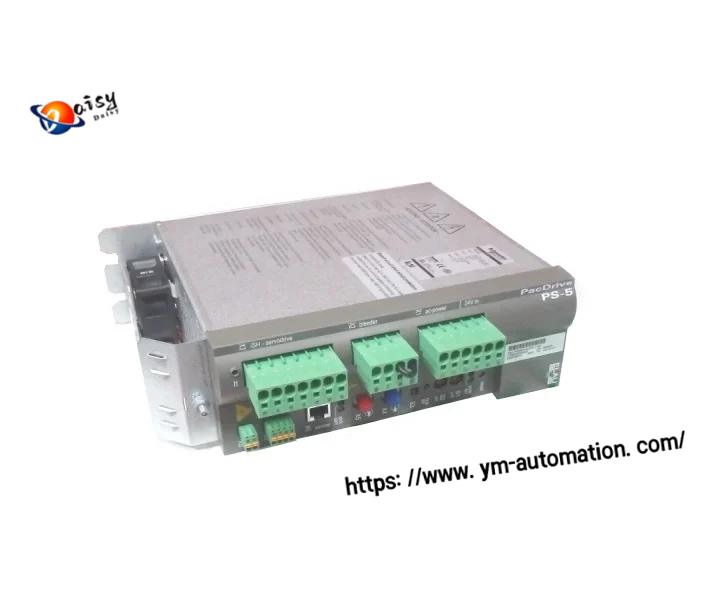

Schneider PS-5/10/20/400/00 is a discontinued original ELAU PacDrive dedicated servo power supply module designed for iSH series servo motor drive systems used in packaging, robotics and machine tool automation. This industrial PSU supports single/three-phase AC main input plus auxiliary 24VDC control power, delivering stable 680VDC DC bus and regulated 24VDC signal output. We supply tested surplus, refurbished and unused stock of PS-5/10/20/400/00 with global fast shipping, ideal for legacy machine maintenance replacement.

Core Product Basic Info

• Full Model: PS-5/10/20/400/00
• Brand: Schneider Electric (ELAU Division)
• Product Type: PacDrive Servo Power Supply Unit
• Production Status: Officially Discontinued
• Origin: Germany
• Tariff Code: 8537101190
• Warranty: 12 months for all units
• Availability: Refurbished tested / unused surplus in stock
• Shipment: Worldwide delivery, 4–7 working days lead time

Key Electrical Specifications

1. Main AC Input: 1/3 Phase 220–480VAC, 48–62Hz, 10A/20A rated
2. Auxiliary DC Input: 24VDC, 13A for control circuit power
3. DC Bus Output 1: Max 680VDC, 10A/20A continuous
4. Control Output 2: Regulated 24VDC, 12A for I/O & sensors
5. Isolation Rating: 1500Vrms 1min between power bus & signal circuits
6. Conversion Efficiency: ≥85% under full load
7. Built-in Protections: Overload, short circuit, overvoltage, overheat, bus fault alarm
8. Fault Feedback: LED diagnostic indicators for power failure & load error

Mechanical Parameters

• Overall Dimension: 150 × 240 × 350 mm
• Net Weight: 2.9kg
• Mounting: Standard cabinet DIN rail fixed installation
• Cooling: Natural convection heat dissipation
• Compliance Mark: CE certified industrial safety standard

Main Product Features

• Dual independent power input design separates power drive and control circuits
• Stable high-voltage DC bus supply for multi-axis PacDrive iSH servo drives
• Real-time fault diagnostic LED for fast on-site troubleshooting
• High voltage isolation design improves anti-interference in harsh factory environment
• Compact cabinet layout saves control panel installation space
• Full compatibility with original PacDrive servo controller series
• Plug-and-play replacement for old PS-5 power modules without wiring modification

Industrial Application Scenarios

• High-speed packaging machinery (cartoning, filling, wrapping lines)
• Multi-axis robotic handling & palletizing equipment
• Precision CNC machine tool servo control systems
• Food & beverage automated production lines
• Pharmaceutical packaging automation equipment
• Legacy ELAU PacDrive system maintenance & spare replacement

Compatible Matching Parts

• iSH series servo motors & servo drives
• PacDrive DB-5 power distribution box
• Original ELAU servo encoder cables & power harnesses
• Schneider PacDrive motion controller modules



•

Discontinued Replacement Guidance

1. Direct Swap Solution: Tested refurbished PS-5/10/20/400/00 stock, no program reconfiguration, direct installation
2. New Upgrade Solution: Schneider Lexium 62 series modern servo power supply, requires minor cabinet wiring reconstruction for new machine transformation

FAQ Section

Q1: Is Schneider PS-5/10/20/400/00 still in production?

Q2: What servo systems does PS-5/10/20/400/00 match?

Q3: Does the refurbished PS-5/10/20/400/00 come with quality test report?

Q4: Can PS-5/10/20/400/00 be shipped globally?
