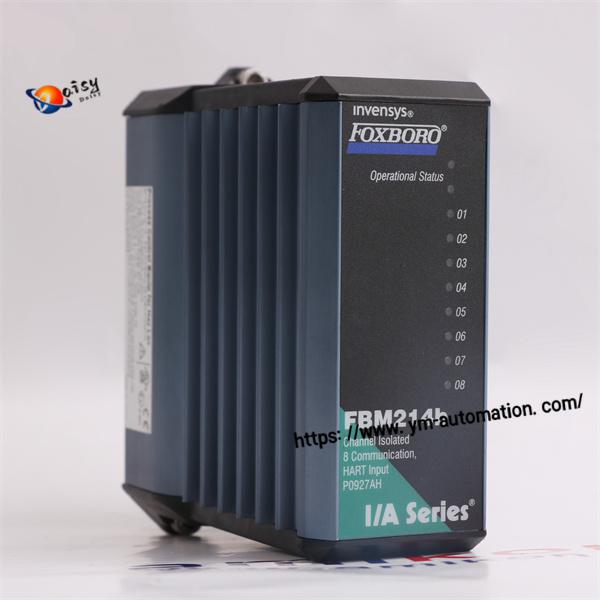

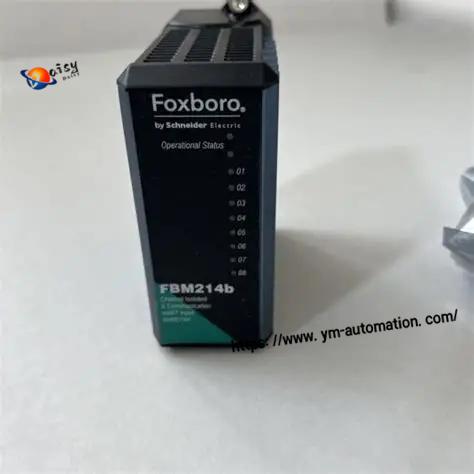

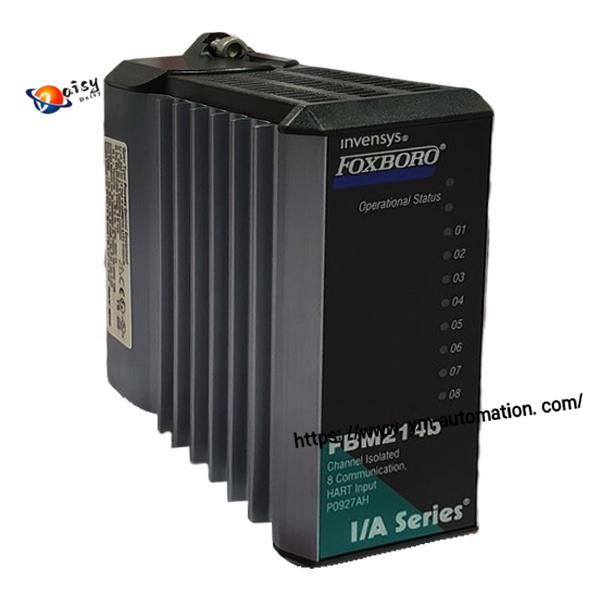

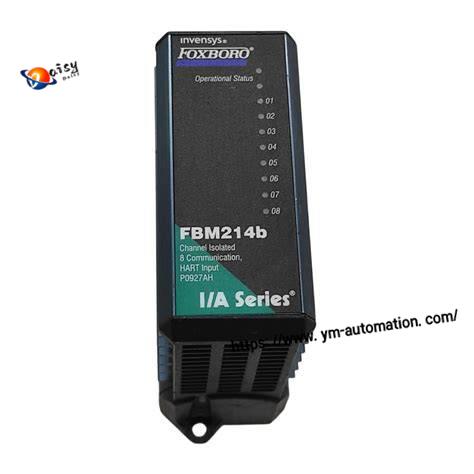

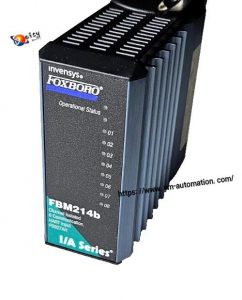

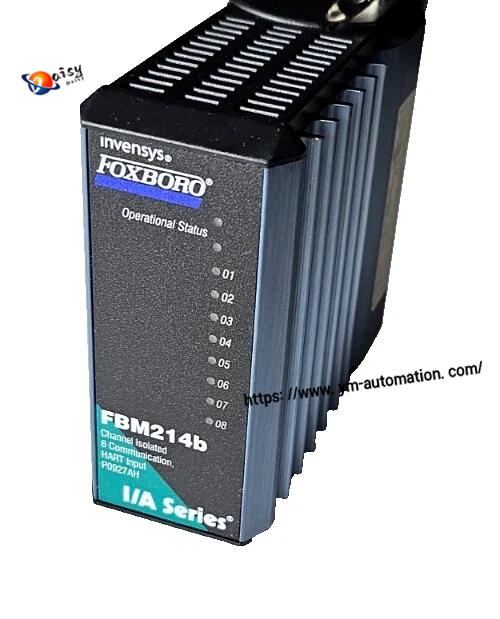

FOXBORO FBM214b RH101AB 0BRY17236811 HART Communication Analog Input Module

Product Basic Info

Full Part Number: FBM214b RH101AB, Serial No. 0BRY17236811

Brand: FOXBORO (Schneider Electric)

Product Line: I/A Series DCS Fieldbus Module

Category: HART Analog Input Interface Module

Lifecycle Status: Classic legacy DCS spare, no official EOL notice, stable surplus stock for plant maintenance & system retrofit

Unit Condition: Original factory sealed new surplus, factory tested pre-delivery

Core Product Features

8 fully galvanic isolated 4–20mA input channels, channel-to-channel & channel-to-logic isolation

Supports mixed wiring of standard 4-20mA transmitters & HART smart field devices without hardware modification

Independent FSK modem per channel for bidirectional HART digital communication, 2 HART messages per second

Built-in isolated current-limited 24VDC loop power supply for each input channel

Redundant 2Mbps fieldbus A/B communication paths for DCS host connection

15-bit high-resolution sigma-delta ADC, ±0.03% full-scale measurement accuracy

Multi-color onboard LED indicators for power, fieldbus status & channel fault diagnosis

Rugged aluminum housing, Class G3 harsh industrial environment compatibility

Max 3030m field wiring distance, compatible with HCF_SPEC-54 Rev8.1 HART protocol

DIN rail rack mount design, plug-and-play with I/A Series backplane baseplates

Complete Technical Specifications

Model Code: FBM214b RH101AB

Serial ID: 0BRY17236811

Input Channels: 8 isolated analog inputs

Signal Range: 4–20mA DC, superimposed HART FSK signal

Isolation Rating: 500V AC per channel isolation

Loop Supply: 24VDC ±10%, max 37mA per channel

Fieldbus Speed: 2Mbps redundant A/B path

Update Rate: 100ms per channel

Power Consumption: Max 7W

Operating Temp: -40°C ~ +70°C

Storage Temp: -40°C ~ +85°C

Humidity: 5%–95% non-condensing

Vibration Resistance: 0.75g 5–500Hz

Weight: 1.3kg

Mounting: Standard I/A Series rack / DIN rail

 Industrial Application Scenarios

Petrochemical & refinery DCS control systems

Thermal power plant auxiliary process monitoring

Water & wastewater treatment plant automation

Oil & gas pipeline flow/pressure measurement

Pharmaceutical batch process control

Old Foxboro I/A Series DCS system maintenance & spare replacement

Stock & Supply Terms

Inventory: Ready new sealed stock, 2–3 working days dispatch

Warranty: 12-month full quality warranty for all units

Global Logistics: DHL, FedEx, sea freight worldwide delivery

Supporting Docs: Free COC certificate, factory test report, commercial invoice

MOQ: 1 unit for maintenance orders, bulk discount for system integrators

 Compatible Matching Accessories

I/A Series rack baseplates & termination assemblies

FOXBORO redundant fieldbus communication cables

Other FBM I/O modules (FBM207, FBM242, FBM232)

I/A Series CPU & power supply modules
