Allen‑Bradley 2711P‑T10C22D9P HMI
-
Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mail： 3598571032@qq.com
Phone/Wechat/Whatsapp：+86 15339539190
-
Details
Product Overview

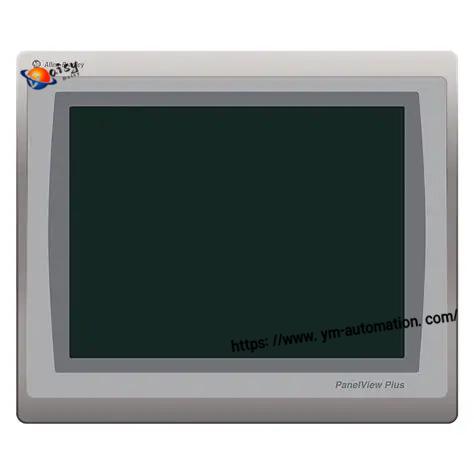

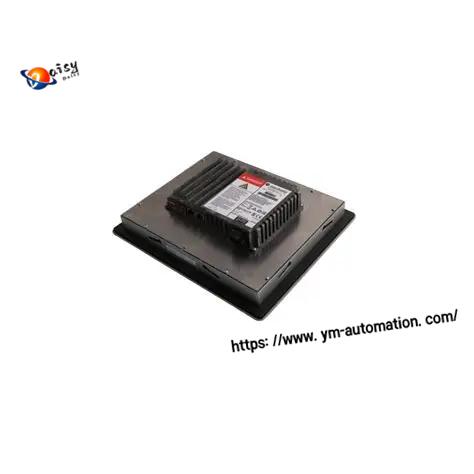

Allen‑Bradley 2711P‑T10C22D9P is a high‑performance HMI operator terminal from Rockwell PanelView Plus 7 Performance series. It features a 10.4‑inch color analog resistive touch‑screen with SVGA resolution. Equipped with dual DLR Ethernet ports, RS232 and multiple USB interfaces plus SD‑card external storage support. Running Windows 10 IoT Core industrial OS, it communicates seamlessly with Allen‑Bradley PLC systems for machine monitoring, parameter modification, alarm display and data logging. Designed for panel cut‑out mounting, this rugged HMI fits harsh factory environments, available for new automation projects as well as legacy equipment maintenance & replacement4D Control
Technical Specifications
| Item | Specifications |
|---|---|
| Model | 2711P‑T10C22D9P |
| Brand | Allen‑Bradley (Rockwell Automation) |
| Series | PanelView Plus 7 Performance |
| Product Type | Industrial HMI Operator Terminal |
| Display | 10.4‑inch Color TFT LCD |
| Resolution | 800×600 SVGA, 18‑bit Color |
| Touch Screen | Analog resistive touch, 1 million‑actuation rating |
| Backlight | CCFL, min.50,000‑hour lifespan |
| Brightness | 300 nits |
| Memory | 512MB RAM, 512MB Flash, 80MB user application memory |
| External Storage | SD‑card support |
| Communication Ports | 2×10/100Mbps DLR Ethernet;3×USB2.0;1×RS232 Serial |
| Power Supply | 18‑30VDC (nominal 24VDC) |
| Max Power Consumption | 50W |
| Operating System | Windows 10 IoT Core |
| Software Support | FactoryTalk View Studio Machine Edition |
| Mounting | Panel cut‑out mounting |
| Dimension(W×H×D) | 297 × 252 × 69.6 mm |
| Net Weight | 2.28 kg |
| Operating Temperature | ‑10℃ ~ +55℃ |
| Certifications | CE, ATEX Zone2/22 |
| Product Status | Original Active production; new surplus & tested refurbished spare parts available |
| Application | Production line, packaging machine, water treatment, metallurgy, general industrial process monitoring |
Key Features
- PanelView Plus7 Performance 10.4‑inch industrial HMI with DLR Device‑Level Ring Ethernet for network redundancy.
- Rugged analog resistive touch panel, stable for long‑term continuous factory operation.
- Rich communication ports for seamless connection with Allen‑Bradley PLC and third‑party automation devices.
- Large onboard memory supports complex graphic screens, alarm history, event logging and data storage.
- Wide‑range industrial temperature design with CE & ATEX certification for harsh workshop conditions.
- Standard panel‑mount form factor, easy replacement for legacy HMI units, suitable for new projects and field maintenance.
Application
Automotive manufacturing, packaging machinery, water treatment, metallurgy, food processing and general factory automation process control.
