CI522AK14 ABB 3BSE018460R1 AF100 Fieldbus Kit for ABB 800xA System
-
Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mail： 3598571032@qq.com
Phone/Wechat/Whatsapp：+86 15339539190
-
Details

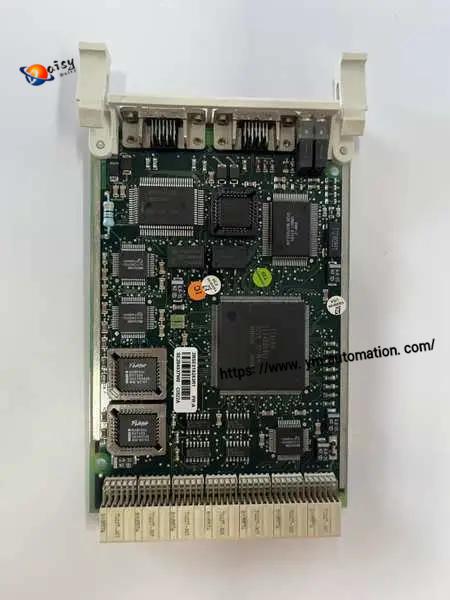

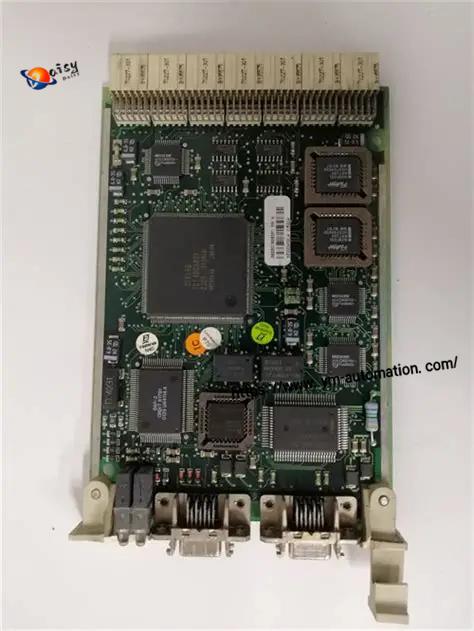

ABB CI522AK14 3BSE018460R1 AF100 Fieldbus Communication Interface Kit
ABB CI522AK14, order code 3BSE018460R1, is a complete AF100 fieldbus communication interface kit designed for ABB AC 800M, AC400 controllers and S800 remote I/O modules. The CI522AK14 kit acts as a reliable communication bridge for distributed automation systems, delivering high-speed AF100 bus data transmission between the controller and remote S800 I/O stations. This ABB CI522AK14 3BSE018460R1 communication kit supports dual redundant module configuration, hot swap operation and built-in diagnostic LEDs, widely adopted in process control, power, oil & gas and petrochemical industrial automation projects.
Technical Specifications
| Item | Parameter |
|---|---|
| Product Model | CI522AK14 |
| Part Number | 3BSE018460R1 |
| Product Type | AF100 Fieldbus Communication Interface Kit |
| Bus Protocol | Advant Fieldbus 100 (AF100) |
| Communication Speed | 1.5 Mbps |
| Transmission Media | Shielded twisted pair cable |
| Max Bus Distance | 100 meters (without repeater) |
| Bus Topology | Daisy-chain / Star topology |
| Galvanic Isolation | Bus side galvanic isolation |
| Power Supply | 24 VDC, powered from backplane |
| Module Dimensions (CI522A) | 265 × 120 × 27 mm |
| Module Net Weight | 0.2 kg |
| Operating Temperature | -20°C ~ +60°C |
| Redundancy | Support dual-module redundancy |
| Hot Swap | Yes, hot-swappable |
| Diagnostic | LED status indicator, bus fault monitoring |
| Compatible System | ABB 800xA, AC800M, AC400, S800 I/O modules |
| Protection Class | IP20 |
ABB 3BSE018460R1 CI522AK14 Included accessories are:
ABB 3BSE018283R1 CI522A
ABB 3BSE018059R1 TC512V1
ABB 3BSC950130R2 TK803V036
