Product Overview

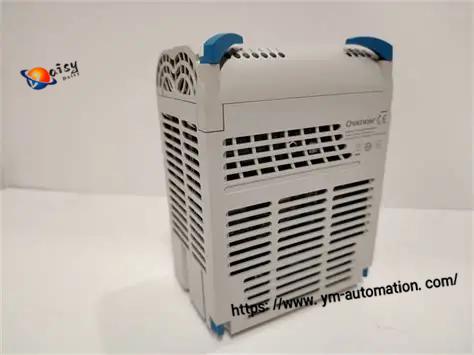

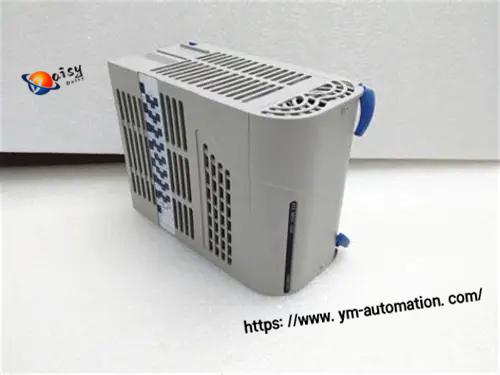

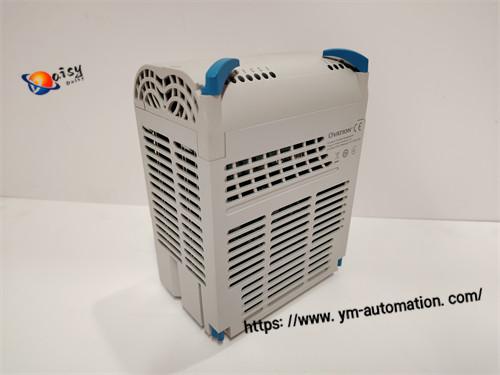

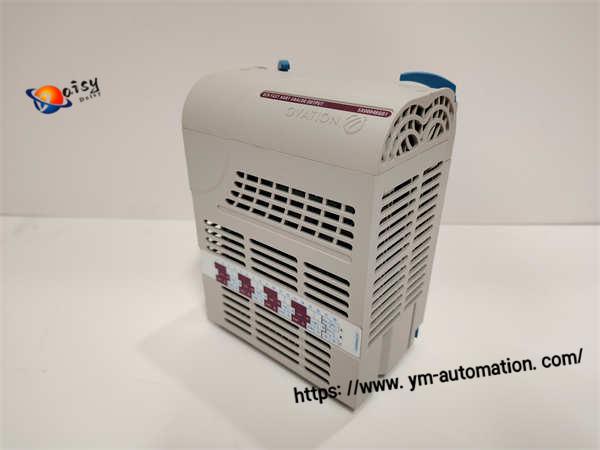

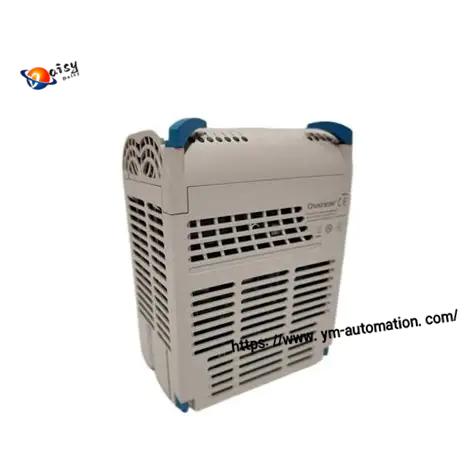

The Emerson 5X00846G01 is a high-performance analog input module designed exclusively for the Emerson Ovation Distributed Control System (Ovation DCS). This 5X00846G01 module collects 4–20mA analog field signals and supports HART multi-drop communication, realizing two-way data interaction with HART transmitters. Equipped with independent channel isolation design, Emerson 5X00846G01 effectively suppresses industrial electromagnetic interference and improves system stability. Widely adopted in power generation, chemical, water treatment and other process industries, the Emerson 5X00846G01 serves as core I/O hardware for DCS reconstruction and equipment maintenance.

Key Features

Emerson 5X00846G01, 16 single-ended analog input channels

Native HART protocol support, compatible with HART 5~HART7 instruments

4–20mA loop-powered analog signal acquisition

≥1500V RMS channel-to-channel galvanic isolation

High measurement accuracy: ±0.05% full scale

Hot-swappable design, convenient online replacement without system shutdown

Self-diagnostic function to quickly locate channel and hardware faults

Plug-in installation matched with Ovation I/O baseplate

Strict industrial grade design for harsh factory environments

Technical Specifications

Model: 5X00846G01

Brand: Emerson

System Compatibility: Ovation DCS

Channel Count: 16 Channels Analog Input

Input Signal: 4–20mA

Communication: HART 5 / HART 6 / HART7

Isolation: 1500V RMS channel isolation

Accuracy: ±0.05% FS (25°C)

Update Rate: Configurable, minimum 100ms per channel

Operating Temperature: 0°C ~ +60°C

Mounting: Ovation standard I/O baseplate

Certifications: CE, UL 61010-1, CSA

Protection Grade: IP20

Application Scope

Thermal power plant Ovation DCS system transformation & maintenance

Petrochemical continuous process monitoring and control

Water & wastewater treatment automation projects

Industrial plant distributed process control system

Replacement spare parts for legacy Ovation control racks
