Product Overview

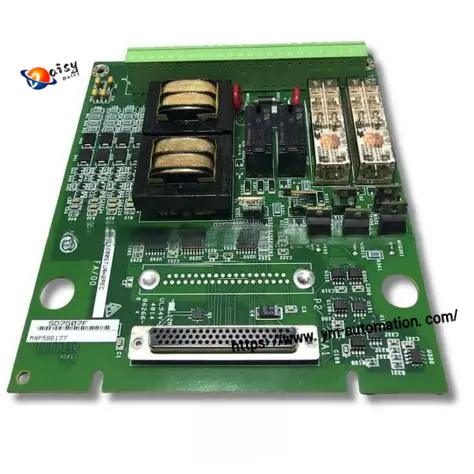

GE IS200STURH2AEC is a simplex primary turbine protection input terminal board for GE Mark VIe Speedtronic turbine control system. It accepts MPU magnetic pickup pulse speed signals, offering four independent pulse speed inputs, two safety trip relay outputs and two synchronization relays for turbine overspeed protection, unit trip interlock and generator synchronizing signal processing. Equipped with 48‑position euro‑style terminals, DC‑62‑pin connector for PTUR I/O pack connection and DC‑37‑pin connector for trip relays. This hardware is OEM obsolete. New surplus stock and fully‑tested refurbished spare parts are available for direct drop‑in replacement and maintenance of legacy gas & steam turbine protection circuits。

Technical Specifications

表格

Key Features

1. Dedicated STUR turbine protection terminal board for Mark VIe system, 4‑channel MPU pulse input for accurate overspeed monitoring.
2. Built‑in safety trip relays and synchronizing relays for unit trip interlock and generator paralleling signal handling.
3. 48‑position euro‑style terminals with DC‑62‑pin standard interface, seamlessly interfaced with PTUR I/O pack for convenient field wiring.
4. SMT surface‑mount hardware design with strong anti‑interference performance, suitable for harsh electromagnetic cabinet environment in power plant.
5. Rack‑mount modular structure, direct drop‑in replacement for existing Mark VIe unit without control logic modification.
6. Critical protection spare component widely used for turbine control system maintenance in power generation and oil‑gas industry.

Application

Thermal power plants, gas‑fired power stations, oil‑gas turbine units with Mark VIe control system for turbine overspeed protection, trip interlock and generator synchronizing signal acquisition & control.
