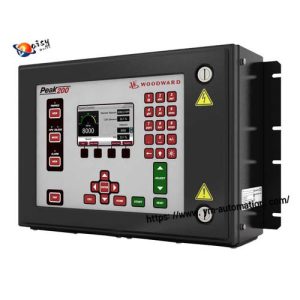

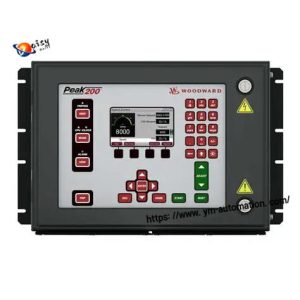

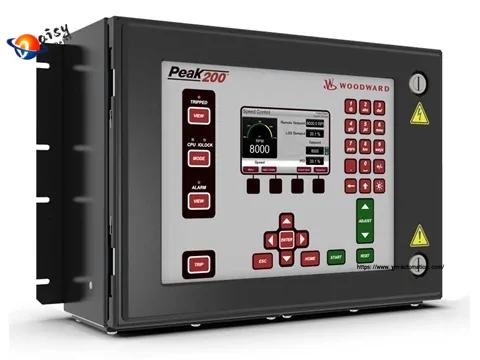

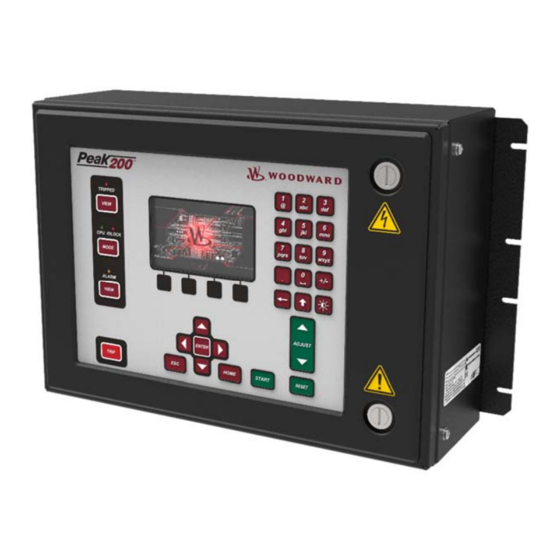

Woodward 8200‑1501 Peak200 Digital Turbine Controller

Woodward 8200‑1501 belongs to Peak200 series bulkhead‑mount digital turbine controller, high‑voltage AC/DC
power supply version, designed for industrial steam turbine speed control, load control and valve position regulationManualsLib.
This Woodward governor controller adopts microprocessor architecture, supports flexible configurable I/O, built‑in fault diagnosis
and event log function, realizes stable turbine running adjustment. It can work standalone or connect with DCS system via communication
interface for site automation control.

Technical Parameters

Model：8200‑1501 (Peak200 Bulkhead HV AC/DC Standard)

Brand：Woodward

Power Supply：HV AC/DC 88‑264VAC / 90‑150VDC

Mounting：Bulkhead wall‑mount enclosure

Operating Temperature：‑20℃ ~ +70℃

Communication：Linknet‑HT, support DCS interconnection

Function：Turbine speed control, load control, actuator drive, fault alarm & event recording

Application：Industrial steam turbine, power generation unit, mechanical drive equipment

Status：Original factory phased‑out, stock spare parts supply only
