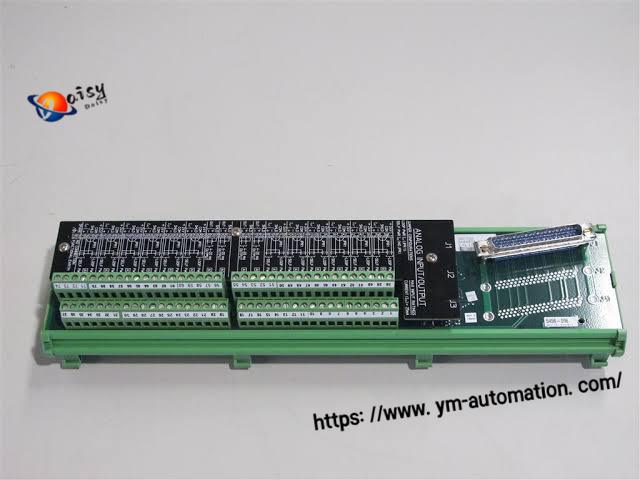

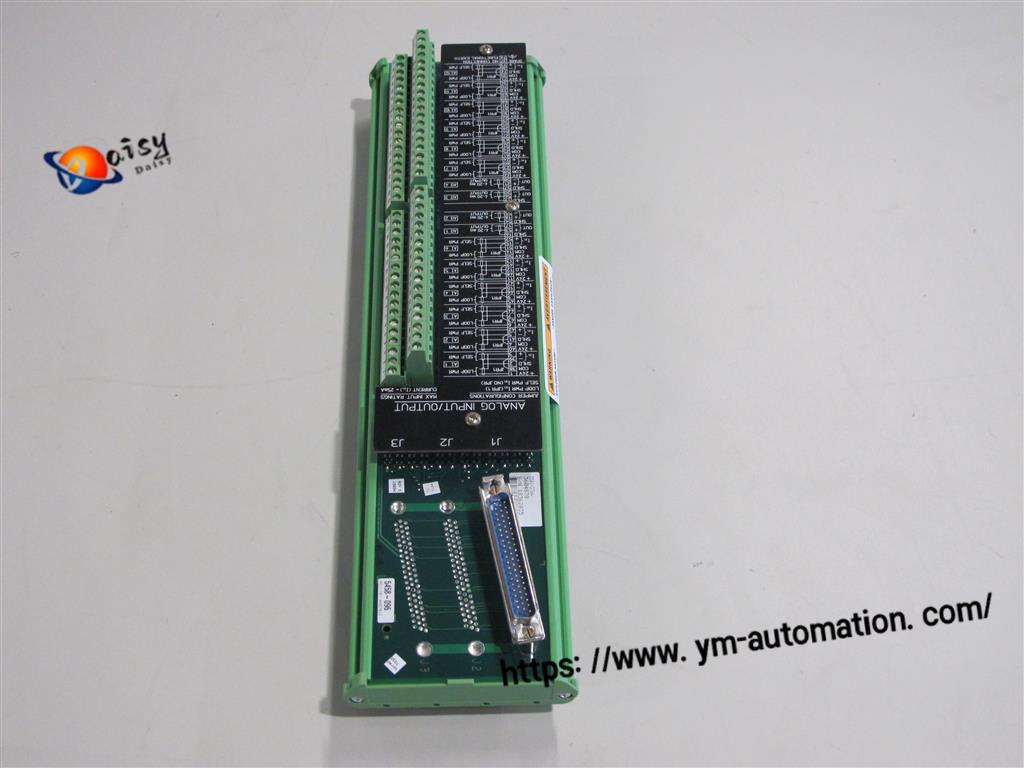

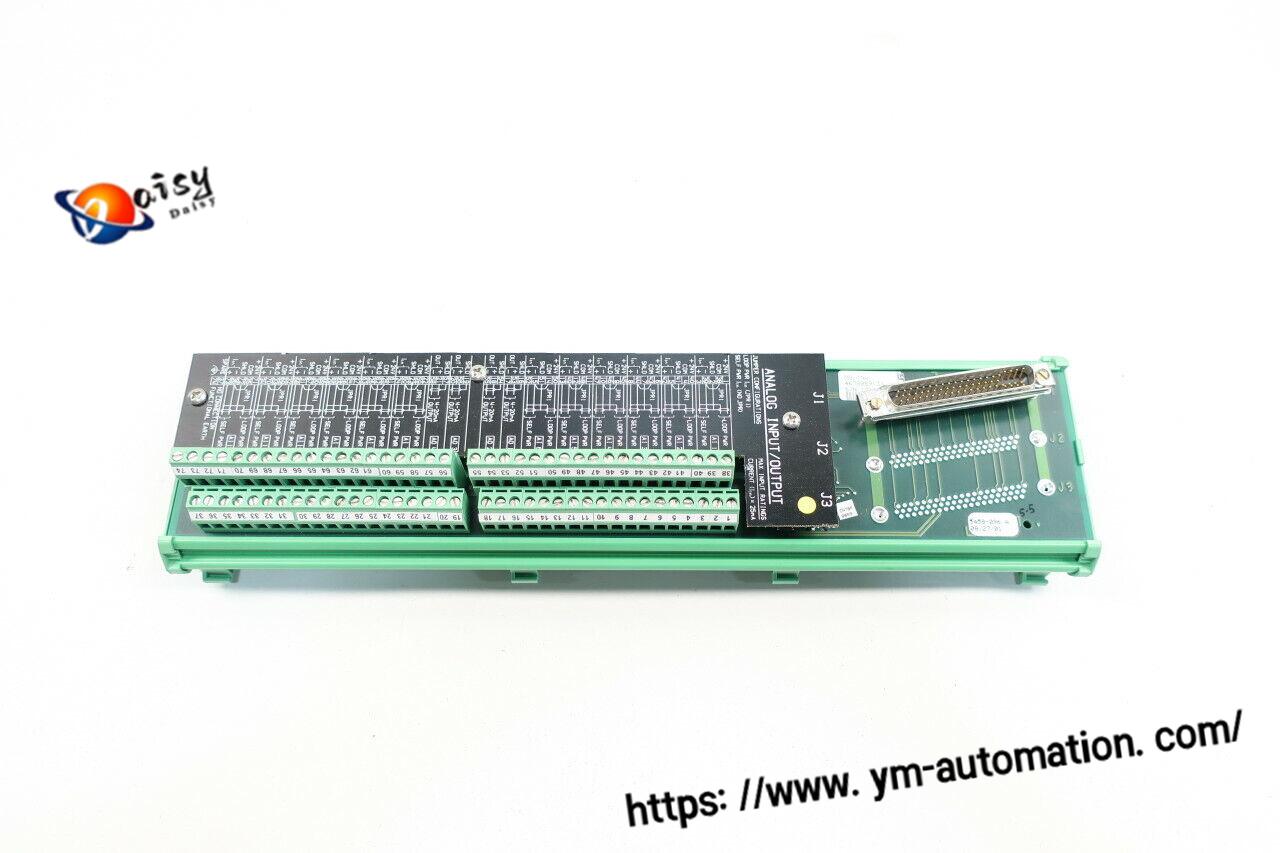

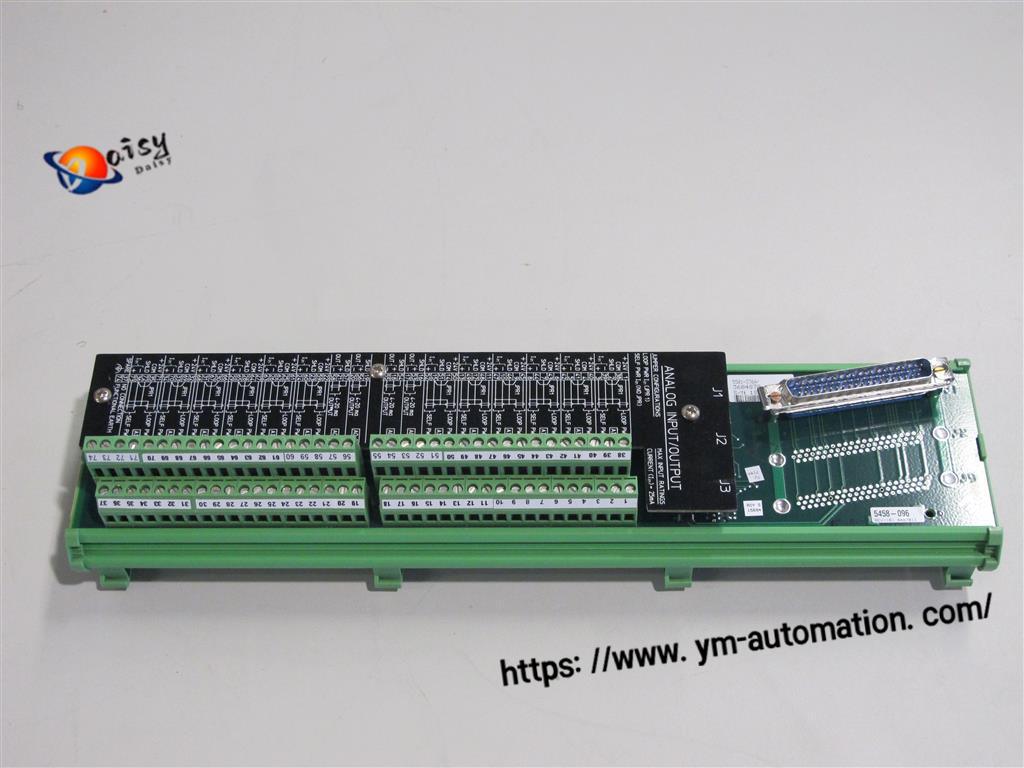

Woodward 5501‑365 REV‑C Turbine Governor I/O Module with Modbus RTU
-
Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mail： 3598571032@qq.com
Phone/Wechat/Whatsapp：+86 15339539190
-
Details
Product Overview
Woodward 5501‑365 REV‑C governor analog I/O module is designed for Woodward MicroNet and MicroNet‑Plus control systems. It acts as signal interface between controller and field instruments, collects analog signals from pressure, temperature and speed sensors, outputs driving signals for hydraulic actuators. On‑board diagnostics and galvanic channel isolation are built‑in. REV‑C denotes hardware revision C, widely used as spare part for turbine, generator and oil‑gas industrial control systems。
Technical Specifications
| Item | Specification |
|---|---|
| Model | 5501‑365 REV‑C |
| Brand | WOODWARD |
| Compatible System | MicroNet / MicroNet‑Plus Governor System |
| Module Type | Governor MPU & Analog I/O Module |
| Power Supply | 24V DC, 18‑32VDC wide range |
| Analog Input | Software configurable 4‑20mA /0‑5V, Max input 25mA, Accuracy ±0.1%FS |
| Analog Output | 3‑channel analog output, 0‑10VDC for hydraulic actuator drive |
| Isolation | Galvanic isolation between channels |
| Communication | RS485 Modbus RTU for remote configuration & diagnosis |
| Operating Temperature | -40℃ ~ +85℃ |
| Hardware Revision | REV‑C |
| Mounting | Rack‑mount for control cabinet |
| On‑board Function | Open‑circuit detection, signal out‑of‑range fault diagnosis |
Key Features
- Optimized for turbine & generator governor control, high‑precision signal I/O to stabilize unit speed and load
- Galvanic channel isolation and wide temperature range, suitable for power plant, offshore oil‑gas harsh environment
- Built‑in self‑diagnosis for circuit fault detection, convenient for on‑site troubleshooting
- Modbus RTU interface supports remote monitoring and parameter configuration
- Direct replacement for older hardware, compatible with simplex and redundant MicroNet control systems
