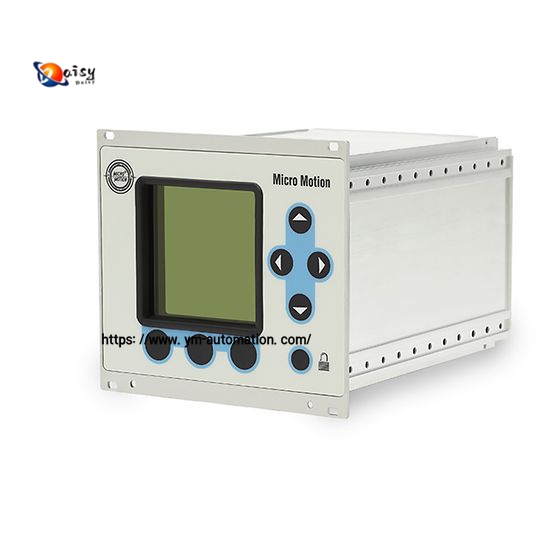

Core Parameters and Functions

1. Measurement Capability
• Mass flow accuracy: ±0.1% (liquids) or ±0.35% (gases)
• Density accuracy: ±0.0005 g/cm³
• Temperature accuracy: ±0.5°C (depending on the sensor model)
2. Communication Protocols
• Supports multiple industrial protocols including HART, Modbus RTU, Profibus PA/DP, and Foundation Fieldbus
• Optional 4-20mA analog output (with HART overlay) or digital output
3. Process Connections
• Sensor interface: Compatible with various 口径 (DN15-DN200) sensors from Micro Motion
• Protection class: IP66/68 (NEMA 4X) for harsh environments
4. Power Requirements
• Power supply range: 18-30VDC (standard) or 85-265VAC (optional)
• Power consumption: <20W
5. Explosion-Proof Certifications
• Optional explosion-proof ratings: ATEX, IECEx, CSA, FM, etc., suitable for hazardous areas
6. Display and Configuration
• Local LCD display (optional): Enables real-time display of multi-parameters like flow, density, and temperature
• Remote configuration via MCT™ 100/200 software or HART handheld devices

Model Analysis

• 3500P: Represents the 3500 series transmitter platform (supporting advanced diagnostics and multi-variable output)
• 1: Input type (typically 1 indicates digital input)
• A05: Communication protocol configuration (e.g., A05 may denote HART protocol)
• B1: Output configuration (e.g., B1 may signify 4-20mA + HART output)
• AE: Housing material and protection class (e.g., AE may refer to an aluminum explosion-proof enclosure)
• ZZZ: Factory-customized code (may include special functions or calibration information

Typical Application Scenarios

• Precise metering and batching of chemical raw materials
• Trade measurement in oil and gas industries
• Ingredient control in food and beverage sectors
• High-precision fluid conveying in pharmaceutical industrie
