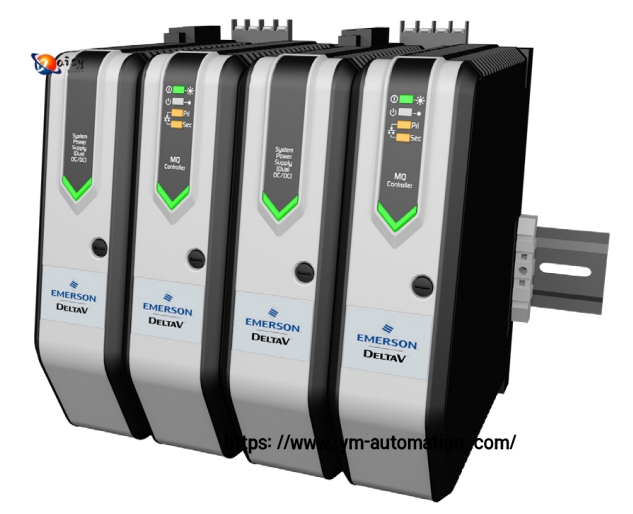

EMERSON SE3007 is a controller module in Emerson's DeltaV series. The following are its specific parameters:
- Memory: User memory is 96MB.
- Fuse Protection: Equipped with an internal non-replaceable 3.0A fuse.
- Power Consumption: Typical value is 5.0W, maximum value is 7.0W.
- Operating Temperature: -40℃ to 60℃ (-40°F to 140°F).
- Storage Temperature: -40℃ to 85℃ (-40°F to 185°F).
- Relative Humidity: 5% to 95% without condensation.
- Vibration: 1mm peak-to-peak at 2 to 13.2Hz; 0.7g at 13.2 to 150Hz.
- Shock: 10g half-sine wave lasting 11ms.
- Module Execution Rate: Configurable as 100ms, 200ms, 500ms, 1s, 2s, 5s, 10s, 30s, 60s.
- Signal Processing Capacity: Supports up to 1500 Device Signal Tags (DST) and 3200 SCADA tags, capable of sending 4000 data values per second, receiving 500 data values per second, with a maximum of 120 unsolicited client nodes.
- Functional Features: Supports self-addressing and automatic I/O detection, 1:1 redundancy for improved availability, CHARM-based electronic marshaling, and easy configuration of the controller.
