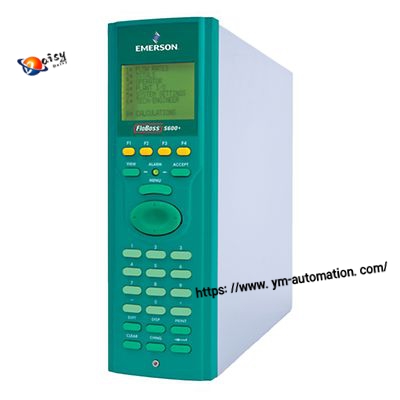

The Emerson FLOBOSS S600+ is a high-performance panel-mounted flow computer. Below is an introduction to its parameters, application scenarios, and operating principle:

1. Parameters

64-bit (double) precision floating-point numbers are used for measurement calculations to achieve maximum accuracy and compliance with API standards.

24-bit high-precision analog input, with an accuracy of ±0.005% of full scale at 23°C.

Supports multi-stream (up to 10 streams with optional expansion modules) and multi-station (up to 2 stations) applications.

Compatible with HART transmitters: 12 channels, supporting up to 50 transmitters (including dual HART masters).

Flexible communication options: Ethernet, serial, and HART.

The CPU module is equipped with two independent Ethernet ports, supporting full-duplex mode at 10 Mb/s and 100 Mb/s.

Total accumulated values are stored in three independent memory locations (triple-register format).

Significantly enhanced data logging and archiving capabilities: For example, a typical archive for a 10-stream application includes 333 days of monthly, weekly, daily, and hourly reports, along with 50,000 events and 50,000 alarms.

Ambient temperature range: -10°C to +60°C.

2. Application Scenarios

Fiscal Flow Measurement: Suitable for fiscal flow measurement in the energy industry (e.g., oil, natural gas), providing accurate data for trade settlement.

Custody Transfer: Used for the transaction and transfer of energy products between different entities, ensuring the accuracy of transferred quantities.

Pipeline Measurement: Applicable to flow measurement in the pipeline transportation of oil, natural gas, etc., for real-time monitoring of fluid flow in pipelines.

Bulk Loading: Used to precisely control the loading volume when fluids are loaded for transportation or storage.

Meter Verification Applications: Enables calibration and verification of flowmeters to ensure their accuracy and reliability.

Single-Stream or Multi-Stream Measurement: Capable of handling flow measurement for single or multiple fluids, supporting simultaneous metering of liquids and gases.

3. Operating Principle

The FLOBOSS S600+ receives input signals from various on-site instruments, such as flow sensors (e.g., turbine, ultrasonic, Coriolis, positive displacement flowmeters) and temperature/pressure transmitters.

Using distributed processing technology, its main processor and local processors in each expansion module convert these input signals into engineering units. Then, it performs corresponding calculations (e.g., flow calculation, temperature-pressure compensation calculation) in accordance with supported measurement standards (e.g., AGA, ISO, GPA, GERG, API, ASTM) to obtain accurate flow data.

Meanwhile, based on preset logic and algorithms, it can output control signals for processes like flow control, valve monitoring, and valve control. In addition, users can configure parameters, view data, and operate the system via the device’s LCD screen and keypad. It can also transmit data and enable remote control with external devices through communication interfaces.
